Product Specifications
| Prod Model: |
SPN-TCB-W-E2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensing Distance: |
28mm |
| Spot Size (Dia.): |
1mm |
| Response Time: |
25us |
| Switching Frequency: |
40kHz |
| Dimension: |
2.0"(51mm) X 2.4"(61mm) X 1.0"(25mm) |
| Weight: |
0.21 Lbs. (95g) |
| Supply Voltage: |
10-24VDC |
| Housing Material: |
Plastic |
| Connection: |
M12 Connector |
| Operating Current: |
60mA |
| Type: |
Color Sensor |
Product Description
W e l c o m e t o V I s I t L a n b a o! ! !

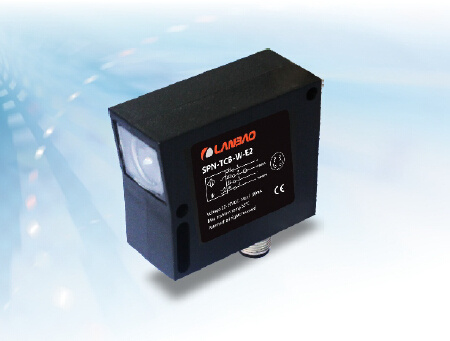

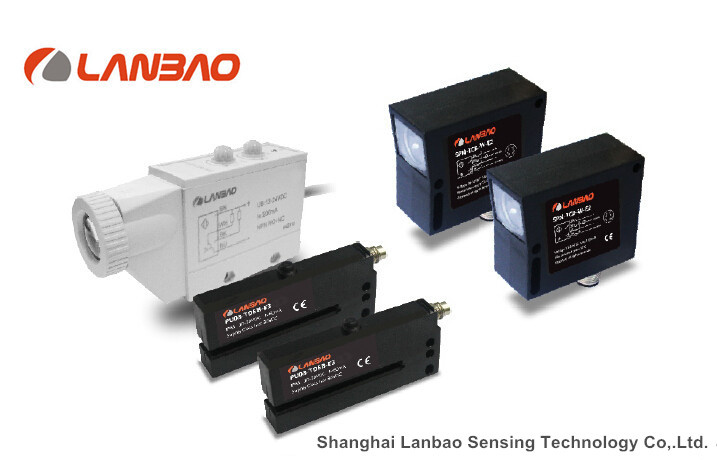

Lanbao Color mark sensor ——SPN-TCB-W-E2
Feature
------------------------------------------------------------------------
The SPN-TCB-W-E2 sensor combines small spot size and fast response to achieve high-speed contrast detection capable of detecting a wide variety of marks and objects. The SPN effectively detects contrast differences between many colors on various surfaces over a range of 50 grayscale levels.The modulated white light source in the SPN is focused to a 2.5 to 3mm spot and directed toward a target.
The diffused light returning to the sensor is measured.
When the level is equal to or exceeds the threshold the discrete output changes state.
Due to the fast response of the sensor, it is suitable for use in high-speed applications.The sensor provides a discrete output that automatically configures to NPN and PNP.
A PLC or a computer can be used to monitor the status of the discrete output signal.
Advantage of Lanbao:
------------------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|

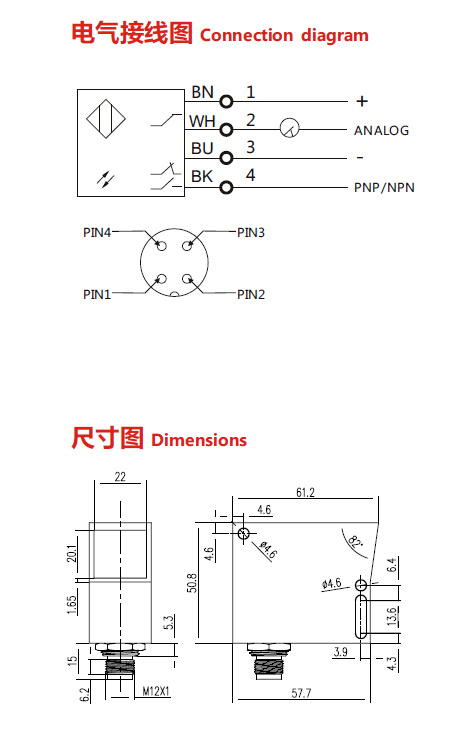

Specification |
|
Model |
SPN-TCB-W-E2 |
|
White light sourse |
Broad spectrum LED, min.100,000 hours |
|
Sensing distance |
28mm |
|
Spot size (dia.) |
1mm |
|
Depth of field |
+/-3 mm from focal point (approx. 28mm) |
|
Response time |
25uS |
|
Switching frequency |
40kHz |
|
LED indensity |
3 level |
|
Grey-scale |
0-50 |
|
Control |
MARK and BKGD keys |
|
Digital output |
Auto-Detect PNP / NPN |
|
Analog output |
0-5V ( 20mV resolution) ) |
|
Power indicator |
Green LED |
|
Detect indicator |
Yellow LED |
|
Programming indicator |
Yellow/ green LED |
|
Data retention |
EEPROM non-volatile memory |
|
Dimension |
2.0"(51mm) x 2.4"(61mm) x 1.0"(25mm) |
|
Weight |
0.21 lbs. (95g) |
|
Supply voltage |
10-24VDC |
|
Operating current |
60mA |
|
Short circuit protection |
Discrete output |
|
Overload/ reverse polarity protection |
Yes |
|
Operating temperature |
-20ºC^55ºC |
|
Storage temperature |
-20ºC^70ºC |
|
Connection |
M12 connector |
|
Housing |
Plastic |
|
Protection degree |
IP65 |
|
