Diffuse reflection
----------------------------------------------------------------
Housing shape: Cylindrical, Rectangular optional
Housing material: Nickel-copper alloy, PBT, PC/ABS plastic optional.
Connection: Cable, M8 connector, M12 connector optional
LANBAO Photoelectric sensors----Advantage
----------------------------------------------------------------------
Adjustable and un-adjustable sensing distance
Set up easily.
Short-circuit protection, reverse polarity protection.
Cable and connector connection are optional.
Housing material 01: Stainless steel housing material, being strong and durable. Housing material02: Plastic housing material, being economical and easy to install.
Light on/dark on conversion function.
Universal Power supply: Built-in power supply, AC, DC or AC/DC universal Power supply.
Relay output capacity: Up to 250VAC*3A.
LANBAO Photoelectric sensors----Variety
----------------------------------------------------------------------
-Diffuse reflection
-Retro reflection
-Through beam
-Focus reflection
-Polarized reflection
-Background suppression
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|

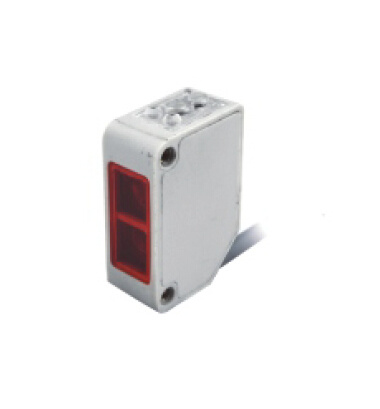

----Photoelectric Sensor Spec. Sheet ---- |
|
Model |
PSF-BC30D |
|
Sensing distance |
30cm |
|
|
Adjustable |
|
Output |
PNP/ NPN NO/ NC |
|
Supply Voltage |
12-24V DC |
|
Light |
Red LED (660nm) |
|
Response time |
<1ms |
|
Output display |
Yellow LED |
|
Surge protection |
Yes |
|
Short circuit protection |
Yes |
|
Ambient Temperature |
-15~+55C |
|
Housing material |
PC/ ABS |
|
Protection degree |
IP67 |
|
Connection |
2m PVC cable/ M8 connector |
|
Certification |
CE |
|
Shanghai Lanbao Sensing Technology Co., Ltd. |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
