Product Specifications
| Prod Model: |
CPEM-FUHA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
UV 370nm, 100, 000hrs. |
| Analog Output: |
0-5V |
| Discrete Output: |
NPN or PNP |
| Current (Max.): |
100mA |
| Supply Voltage: |
12...24VDC |
| Dimension(Mm): |
51*61*25 |
| Weight: |
95g |
| Operating Temperature: |
-10...55c |
| Storage Temperature: |
-20...70c |
| Protection: |
Reverse Polarity, Over Current, Short-Circuit |
| Type: |
Through Beam Reflection Photoelectric Sensor |
Product Description
W e l c o m e t o V i s i t L a n b a o ! ! !

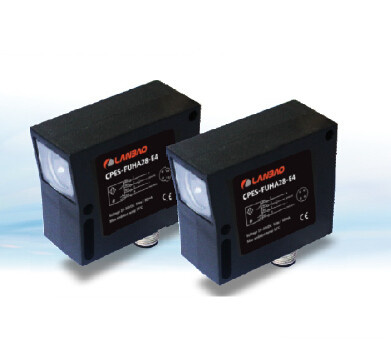

Lanbao Luminescence Sensor
Feature
------------------------------------------------------------------------
3.0mm spot size
25uS response time
Two-button teach
Automatic LED intensity adjustment
PNP/NPN
Discrete output
Analog output
Small Size
Accessories
------------------------------------------------------------------------
Bracket
Product application
------------------------------------------------------------------------
Adhesives, gums and glues
Labels, packaging
UV inks, visible and invisible
UV crayons and chalk, lumber marking
Tamper-evident-seals
Textiles, luminescent threads
Optical brightness, paper industry
Grease and oils

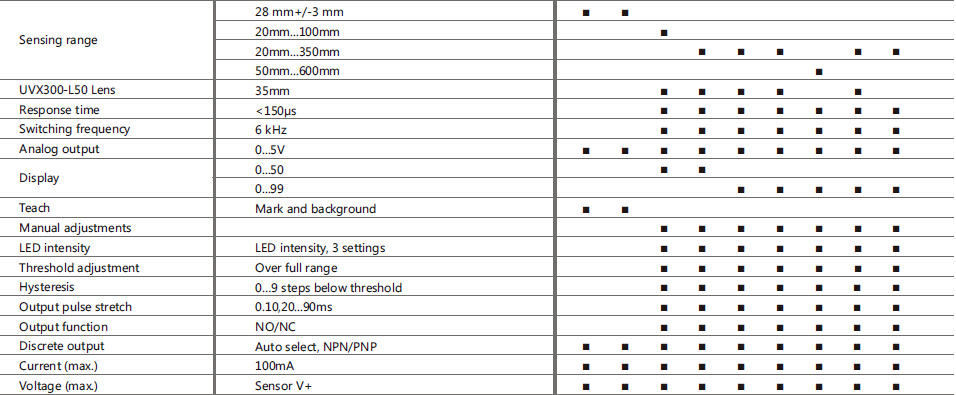

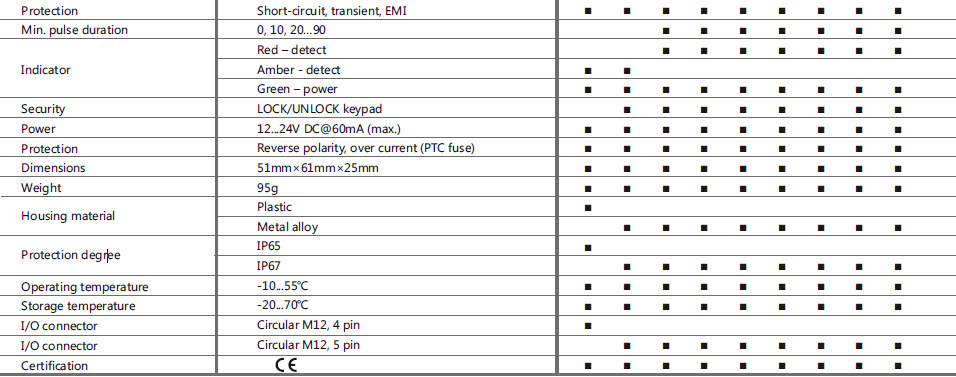

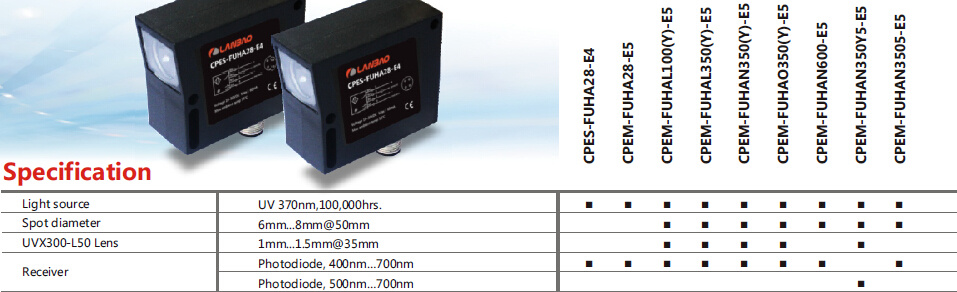

Specification :
------------------------------------------------------------------------
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
