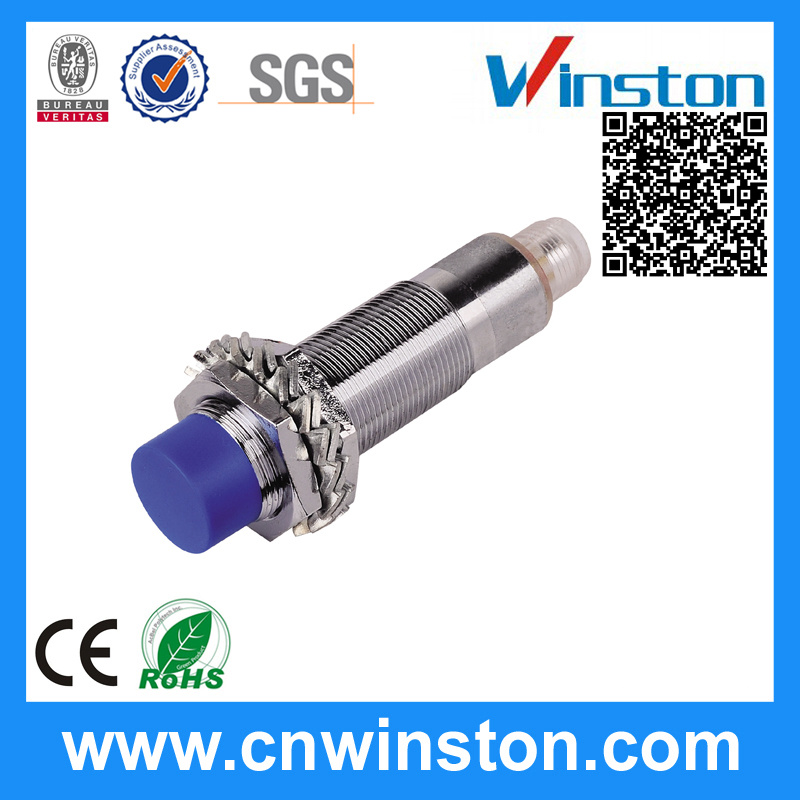

Lm18-T Inductive Proximity Switch with CE

Product Specifications

Prod Model:	LM18-T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Antistop:	Inductive Proximity Sensor Switch
Shell Material:	Metal
Protection Degree:	IP67
Standard:	Standard
Certification:	CE
Type:	Proximity Switch
Wires:	NPN PNP Two-Wires
Application:	Location Detection

Product Description

Product Description:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)

5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)

DETECTION DISTANCE                                                        5mm
Flush	DC 10-30V	NPN	NO	LM18-3005NAT
			NC	LM18-3005NBT
			NO+NC	LM18-3005NCT
		PNP	NO	LM18-3005PAT
			NC	LM18-3005PBT
			NO+NC	LM18-3005PCT
		two wire system	NO	LM18-3005LAT
			NC	LM18-3005LBT
	AC 90-250V	SCR Control-lable silicon	NO	LM18-2005AT
			NC	LM18-2005BT
			NO+NC
		Relay output
	DETECTION DISTANCE                                                        8mm
Non-Flush	DC 10-30V	NPN	NO	LM18-3008NAT
			NC	LM18-3008NBT
			NO+NC	LM18-3008NCT
		PNP	NO	LM18-3008PAT
			NC	LM18-3008PBT
			NO+NC	LM18-3008PCT
		two wire system	NO	LM18-3008LAT
			NC	LM18-3008LBT
	AC 90-250V	SCR Control-lable silicon	NO	LM18-2008AT
			NC	LM18-2008BT
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				18*18*1(A3 iron)
Repeated precision				0.02
DC/AC				200Hz/25Hz
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				LJ18A3-8-
