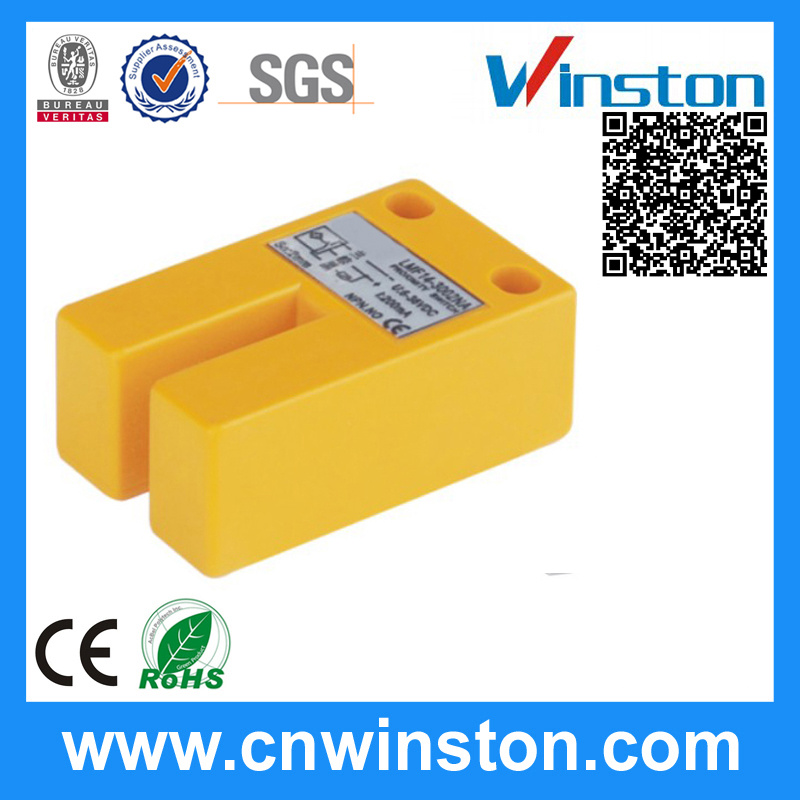

Product Specifications
| Prod Model: |
LMF14 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Max Temperature: |
-25 - +75 Degree |
| Shell Material: |
Stainless Sheel |
| Protection Grade: |
IP67 |
| Rated Voltage: |
6-36V DC |
| Manufacturer: |
OEM |
| Condition: |
Original New |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
Product Description:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
| DETECTION DISTANCE |
|
| Flush | DC 10-30V | NPN | NO |
|
| NC |
|
| NO+NC |
|
| PNP | NO |
|
| NC |
|
| NO+NC |
|
| two wire system | NO |
|
| NC |
|
| AC 90-250V | SCR Control-lable silicon | NO |
|
| NC |
|
| NO+NC |
|
| Relay output |
|
| DETECTION DISTANCE 5MM |
| Non-Flush | DC 10-30V | NPN | NO | LMF14-3005NA |
| NC | LMF14-3005NB |
| NO+NC | LMF14-3005NC |
| PNP | NO | LMF14-3005PA |
| NC | LMF14-3005PB |
| NO+NC | LMF14-3005PC |
| two wire system | NO | LMF14-3005LA |
| NC | LMF14-3005LB |
| AC 90-250V | SCR Control-lable silicon | NO | LMF14-2005A |
| NC | LMF14-2005B |
| NO+NC |
|
| Relay output |
|
| Controloutput | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V |
| Consumption current | DC< 15mA, AC< 10mA |
| Standard detected object | 18*18*1(A3 iron) |
| Repeated precision | 0.05 |
| DC/AC | 500HZ/15HZ |
| Working environment temperature | -25~+70º C |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin |
| Protection grade | IP67 |
| Altemative model at home and abroad |
|
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
