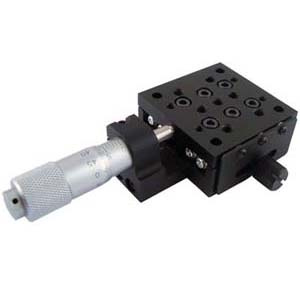

Feature
1) Precision machined hard Aluminum parts; Black Anodizing
2) Use high precision crossed ball guide
3) Heavy load capacity and long lifetime
4) High precision base and table to ensure yaw, pitch and parallelism
5) High precision micrometer to achieve micron level adjustment
6) Micrometer is placed in central area, easy to operate
7) Reset with spring to eliminate axial end play
8) Easy to comprise Multi-Axis stage with other types of stages
Model |
ZXT013MM01 |
Table Size |
40mm× 40mm |
Driving Mode |
Micrometer |
Driving Position |
Central |
Travel Distance |
13mm |
Min Scale |
10μ /0.5μ |
Precision |
3μ /1.5μ |
Min Adjustment |
2μ /0.1μ |
Guide |
Crossed Ball Guide |
Load Capacity |
8kg |
Straightness |
2μ |
Deflection |
25″ |
Pitch |
15″ |
Table Parallelism |
15μ |
Moving Parallelism |
7μ |
Weight |
0.2kg |
Material |
Hard Alu Alloy |
Surface Treatment |
Black Anodizing |
