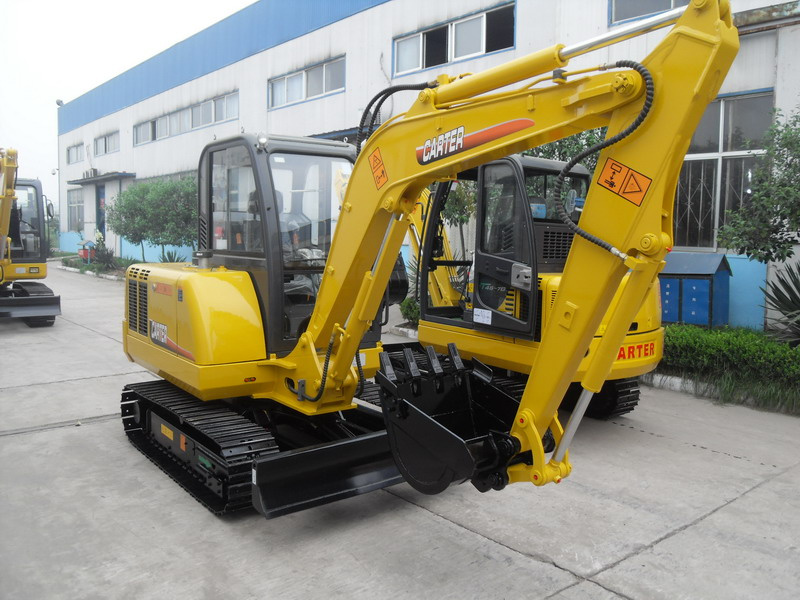

Product Specifications
Prod Model: |
CT40-7A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
Cummins Engine |
Type: |
Crawler Excavator |
Size: |
Small-Scale |
Condition: |
New |
Certification: |
SGS |
Product Description
1. Yanmar engine 4TNV88 or Cummins engine
2. KYB hydraulic components
3. On-line digital monitoring and control system
4. GPS satellite(optional)and remote control diagnose system(optional)
5. Rubber pedrail(optional, or steel pedrail), no damage to the ground of road
6. Full opened engine hood and easy up-forward-lifted cab
7. Cold&warm air conditione
Operate weight kg |
4200 |
Bucket capacity m³ |
0.17 |
Engine model |
YANMAR 4TNV88 |
Engine power(kw) |
25.2 |
Swing speed(rpm) |
11 |
Ground pressure(Kpa) |
29 |
Travel speed(km/h) |
4.4/2.7 |
Tracking force(kn) |
34.1 |
Gradeability(°) |
30 |
Main dimensions |
Upperstrcuture width (mm) |
1600 |
Undercarriage width(mm) |
1750 |
Cabinet height(mm) |
2455 |
Rear swing radius(mm) |
1600 |
Ground clearance(mm) |
350 |
Working range |
Max digging radius(mm) |
5530 |
Max digging depth (mm) |
3405 |
Max digging height(mm) |
5030 |
Max dumping height(mm) |
3410 |
Max dozer cutting depth(mm) |
380 |
Max dozer lifting height(mm) |
255 |
Standard Equipment |
Japanese KYB main pump PSVD2-21E-14 |
Japanese KYB tracking motor MAG-26VP-370F-1 |
Japanese KYB swing motor MSG-27P-18E-5 |
Japanese KYB control Valve KVSE-72-10 24.5MPa |
Italian pilot control lever YD111400 |
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
