Product Specifications
| Prod Model: |
LR18X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification(Mm): |
M18*1*50/ M18*1*53 |
| Mounting: |
Flushed/ Non-Flushed |
| Sensing Distance: |
5mm/ 8mm |
| Supply Voltage: |
8.2VDC |
| Output: |
Namur |
| Frequency: |
1500Hz/ 1000Hz |
| Ambient Temperature: |
-25~+70c |
| Connection: |
2m PVC Cable |
| Measuring Principle: |
Inductive Type |
Product Description
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Details:
----------------------------------------------------------------

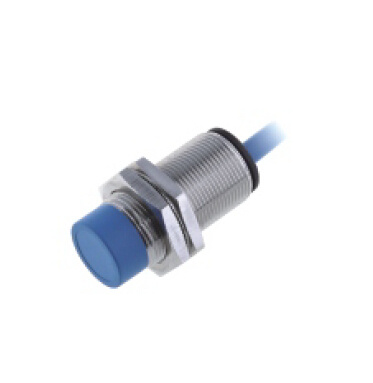

NAMUR inductive sensor
Low-voltage power supply,
Micro-current design
Apply to alert occasions of inflammable, explosive
Output current: Non-act: ≥ 2.2mA
Activated≤ 1mA
Metal cylinderical inductive sensor
Non-contact detecting way effectively avoids abrasion, safe and reliable
Built-in ASIC ensures quick response, high frequency, stable performance
Note: Customize for housing material and shape
Feature Description
-----------------------------------------------------------------
Small volume for narowwness space
Reverse polarity protection
Housing material: Stainless steel
Protection degree: IP67 (IEC)
CE, CCC, UL, RoHS, ISO.
Products Advantage:
----------------------------------------------------------------
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.
About the product details:
----------------------------------------------------------------
1. Housing size: Short, Standard, Long. 3 sizes are available.
2. Contactless, fast response, high frequency
3. Reverse polarity and surge protection
4. CE, CCC, UL, RoHS certification
Our advantage:
----------------------------------------------------------------
With excellent talents, core technology, Lanbao always concentrates in industrial automation field.
By introducing global leading management philosophy and systems, congregating design, development, research and production, it is aim of Lanbao that finally to be a leading manufacturer in global industrial automation field.
Our series international leading automation manufacturing quipments ensure international technical level and reliable quality, our strict quality management and control process guarantees "zero defect"products.
About Lanbao sensing tech. Co. Ltd.
----------------------------------------------------------------
Established in 1998, Shanghai Lanbao Sensing Technology Co., Ltd. Is a leading industrial automation products supplier in China.
Our main businesses are industrial sensors R&D, production, sales and application, providing customers with standard and individual products and systems.
Lanbao industrial sensors cover over 30 series, 3000 specifications, main products are inductive sensors, photoelectric sensors, capacitive sensors and pressure sensors. Focus on innovation, quality, service and global market, Lanbao insists on creating maximal value for customers.
Appreciate for your information in advance. Look forward to hear from you soon.
|
Model |
LR18X |
|
Specification(mm) |
M18*1*50/ M18*1*53 |
|
Mounting |
Flushed/ Non-Flushed |
|
Sensing distance |
5mm/ 8mm |
|
Supply voltage |
8.2VDC |
|
Output |
Namur |
|
Return difference |
1-20% |
|
Repeated accuracy |
<3% |
|
Frequency |
1500Hz/ 1000Hz |
|
Output display |
/ |
|
Polarity protection |
/ |
|
Insulation pressure resistance |
500 V/AC,50/60Hz,60s |
|
Short-circuit protection |
/ |
|
Ambient temperature |
-25~+70C |
|
Ambient humidity |
35~95% |
|
Protection degree |
IP67 |
|
Housing material |
Nickel-copper Alloy |
|
Connection |
2m PVC Cable |
|
Certification |
CE,UL |
|
