Product Specifications
| Prod Model: |
PTC-PC150V8PC-E5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensing Distance: |
0.1-1.5m |
| Output: |
PNP Nc |
| Alarm Output: |
PNP No |
| Response Time: |
4ms |
| Reverse Polarity Protection: |
Yes |
| Short Circuit Protection: |
Yes |
| Overload Protection: |
Yes |
| Lens Material: |
PMMA |
| Housing Material: |
PC/ ABS |
| Connection: |
M12 Connector |
Product Description
Welcome to visit Shanghai Lanbao Sensing Technology Co.,Ltd.

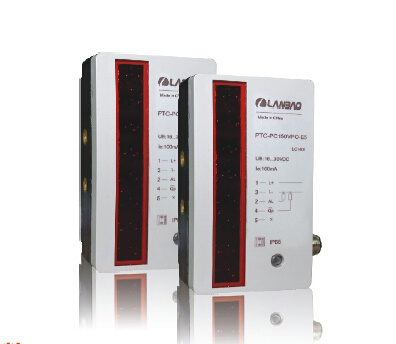

Polarized reflection sensor——PTC Series.
PTC Series Feature:
---------------------------------------------------
1. Polarized retro-reflection, be able to detect semi-transparent high reflective targets
2. Precise detection, 30mm resolution
3. Visible red beam, suitable for counting or incomplete targets detection
4. Multiple function status display: power, alarm and output
5. Self-diagnose function and short-circuit protection function.
PTC Series Application:
---------------------------------------------------
Be applied in the industrial, assembly line control and civilian equipment field, play the role of area protection, security protection, size detection, height detection.

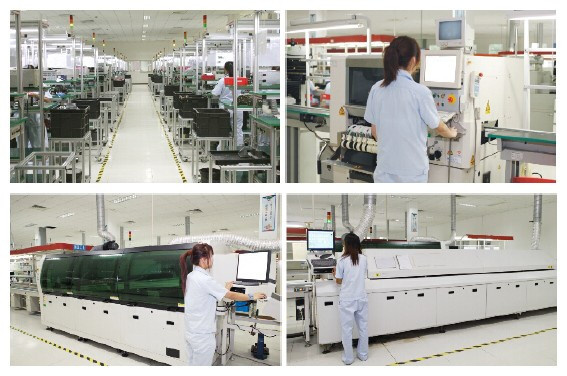

Lanbao factory picture:
---------------------------------------------------
Note1:
Don't using this product in the personal security protection.
Note2:
Customize for cable length, housing material and shape.
Note3:
Lanbao is top sensor manufacturer in China. Her strong items are: inductive, capacitive, photoelectric sensors, light curtain and accessories, with UL,CE,RoHS, ISO:9001:2008 certification.
If you are considering decreasing your cost for purchasing high quality sensors, then Lanbao is absolutely your best choice.
Any query, just feel free to let us know.
|
Lanbao Measuring Light Curtains__PTC Series |
|
Model |
PTC-PC150V8PC-E5 |
|
Sensing mode |
Polarized Reflection |
|
Sensing object |
Targets: Ø30 opaque objects (reflector TD-10) |
|
Sensing distance |
0.1-1.5m |
|
Output |
PNP NC |
|
Alarm output |
PNP NO |
|
Rated operation current |
<100mA |
|
Supply voltage |
18-30V DC |
|
Response time |
<4ms |
|
Light |
660nm Infrared LED (modulate) |
|
Reverse polarity |
Yes |
|
Short circuit protection |
Yes |
|
Overload protection |
Yes |
|
Ambient temperature |
-10~+55C |
|
Protection degree |
IP65 |
|
Housing material |
Housing material: PC/ABS, Lens: PMMA |
|
Connection |
M12 connector |
|
Shanghai Lanbao Sensing Technology Co., Ltd. |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
