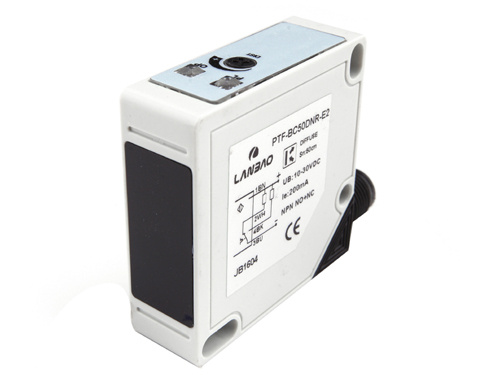

Product Specifications
| Prod Model: |
PTF-E2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensing Distance: |
3m |
| Sn Range: |
Unadjustable |
| Output: |
PNP/ NPN |
| Supply Voltage: |
10-30VDC |
| Response Time: |
<8.2ms |
| Light: |
Infrared LED |
| Polarity Protection: |
Yes |
| Short Circuit Protection: |
Yes |
| Housing Material: |
PC/ ABS |
| Connection: |
M12 Connector |
| IP Rating: |
IP64 |
Product Description
Welcome to Visit Lanbao! ! !
Retro reflection type
----------------------------------------------------------------
Housing shape: Cylindrical, Rectangular optional
Housing material: Nickel-copper alloy, PBT, PC/ABS plastic optional.
Connection: Cable, M8 connector, M12 connector optional
LANBAO Photoelectric sensors----Advantage
----------------------------------------------------------------------
Adjustable and un-adjustable sensing distance
Set up easily.
Short-circuit protection, reverse polarity protection.
Cable and connector connection are optional.
Housing material 01: Stainless steel housing material, being strong and durable.
Housing material02: Plastic housing material, being economical and easy to install.
Light on/dark on conversion function.
Universal Power supply: Built-in power supply, AC, DC or AC/DC universal Power supply.
Relay output capacity: Up to 250VAC*3A.
LANBAO Photoelectric sensors----Variety
----------------------------------------------------------------------
-Diffuse reflection
-Retro reflection
-Through beam
-Focus reflection
-Polarized reflection
-Background suppression
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Model |
PTF-E2 |
|
Sensing mode |
Retro reflection |
|
Sensing distance |
3m, 5m Unadjustable |
|
Output |
PNP/ NPN |
|
Supply voltage |
10-30 V DC |
|
Lighting |
Infrared LED (880nm) |
|
Response time |
<8.2ms |
|
Output display |
Yellow LED |
|
Polarity protection |
Yes |
|
Short circuit protection |
Yes |
|
Ambient temperature |
-15~+55C |
|
Protection degree |
IP67 |
|
Housing material |
PC/ABS |
|
Connection |
M12 connector |
|
Certification |
CE |
|
