Product Specifications
| Prod Model: |
MTC200 |
| Material: |
Element Semiconductor |
Product Description

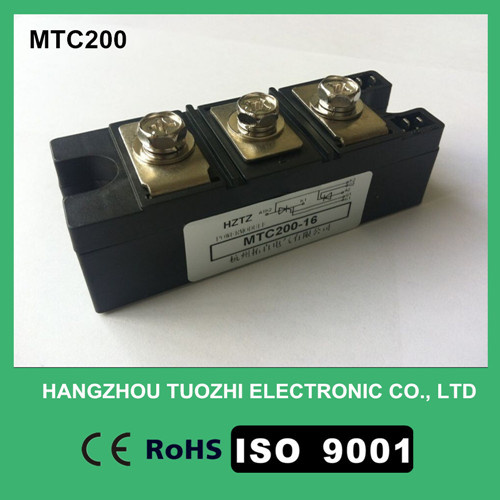

Style No.: MTC200
Features:
Isolation voltage: 2500V~
Thyristor for line frequency
Planar passivated chip
Long-team stability and advanced power cycling
Small and light, industry standard outline and RoHS compliant
Specification:
Average on-state current: 200A
Vrrm: 600-1800V
Irrm: 30mA
Itsm: 7.2KA
I2t: 259000A2S
dv/dt: 800V/μs
di/dt : 100A/μs
Rth(j-c): 0.14 ºC/W
Rth(c-h): 0.04ºC/W
Iiso: 2500V~
Tsbg:-40 -125ºC
Wt: 780g
Application:
Heating controller, AC/DC motor control, rectifying power, AC switch power.
Hangzhou Tuozhi Electronic Co., Ltd is a specialized manufacturer of electric elements. We have Advanced DC electrical components research and development laboratories and reliability experiment platform.
Hangzhou Tuozhi Electronic Co., Ltd located in Hangzhou, Zhejiang, China, have been specialized in semiconductor area almost 10 years, and we have got ISO9001, ISO14001, RoHS and CE certificate.
The main products include:
Thyristor module
Rectifier module
Thyristor/Diode module
Single-phase rectifier/three-phase rectifier
Bridge Rectifiers
Super Fast Recovery Rectifiers
Quick thyristor
MOS relay
Solid State Relay
Three-phase solid state relay elements
Smart voltage adjustment module
SCR phase-shift voltage regulator
Heatsinks
Instrument and apparatus
Photovoltaic defence-attack diode module
