Product Specifications
| Prod Model: |
MC-TS1015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Flat-Bed Cylinder Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
Product Description
Introduction:
TS1015 is a multi-purpose printer fully developed by our company, which employs print head with 3.5PL nozzle diameter and integrate core technology of large format printer.
TS1015 features in large format printing, high speed with double print heads, high resolution and stability, low maintenance cost and adaptable to various environments.
When the ownership of TS1015 is yours, human cost would be greatly saved, productivity of other kind printers will be doubled or above.
TS1015 helps you to gain an advantageous position in market with low cost of consumable including print head and ink.
Features:
Printable on a wide range of substrates, generate bright color even on irregular surfaces..
Employ print head with 3.5PL nozzle diameter, printing resolution reach up to 1440 dpi, print brighter and richer color.
Dual print heads available in 4 x 4 colors, fully meet industrial production needs.
Utilize imported high quality super mute linear guide rails, high stability and precision.
Apply intelligent print head carriage lifting, auto-complete lifting on the basis of substrate, stable lifting, high precision, controllable and high speed.
Use continuous ink supply system, greatly reduce printing cost and increase profitability.
Perfect combination of special ink elements and professional RIP software, maintain outdoor printing works long duration, clear and bright.
Printing speed can be adjusted by printing resolution.
Printable size up to 1000mm (W) x 1500mm (L).
Auto adjust substrate thickness through automatic censor, restore anchor automatically when output.
Technical Specifications:

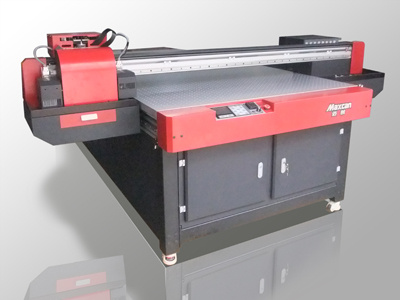

Model: MC1015 UV Flatbed Printer
UV device: LED UV
Print head quantity: 2
Print head type: Epson DX5
Printing resolutions: 360*360 dpi, 360*1080dpi, 540*720dpi, 1080*720dpi
Printing mode: Unidirectional and Bidirectional
Printing speed (2 head, double 4 color): 4 Pass/8 square meters per hour; 6 Pass/ 6.5M2/hr.; 8 Pass/ 3.5M2/hr..
Media handling: Vacuum platform
RIP solution: Ultraprint, Maintop, Photoprint
File format: Tiff, Jpeg, Postscript3, EPS, PDF and more
Color control: ICC based color, curves and density adjustment function
Interface: USB2.0
Ink type: UV curable ink, 500ml x 4 colors, 500ml x 4 colors + White
Printing color: High-precision intelligent double IV 4 colors/4 colors (CMYK), CMYK + White
Printing size: 1000mm*1500mm
Printable media: Rigid and Flexible such as glass, aluminum, plastic board, wood board, polystyrene board, leather, polyurethane, foam board, plastic sheet, metal sheet, textile, wallpaper, bricks, ceramic tiles and so on.
Media thickness: Up to 100mm
Power specification: 50Hz/60Hz, 220V(±10%) >35A, P2000W
Operational environment: Temperature: 20°C-28°C (68-82.4°F), Humidity: 40-60% RH
Dimensions [LxWxH]: 2000mm x 2120mm x1200mm
Net weight: 450 KG
