Product Specifications
| Prod Model: |
W2225 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Excavator: |
Crawler Excavator |
| Engine: |
Isuzu |
| Operation Weight: |
22ton |
| Hydraulic Pump: |
Kawasaki |
| Track Width: |
600mm |
| Type: |
Crawler Excavator |
| Size: |
Medium-Sized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

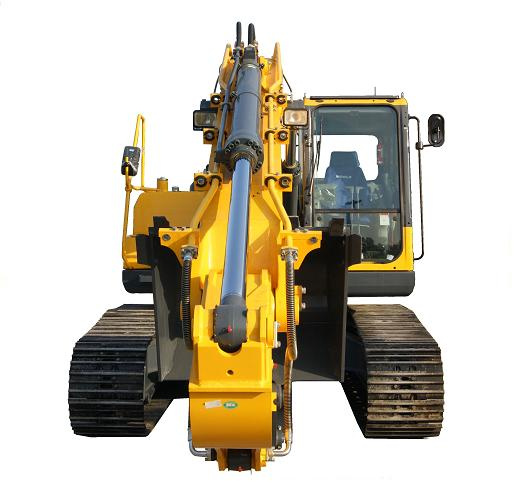

22ton Hydraulic Crawler Excavator, Model No. W2225
22 ton excavator, ISUZU engine, Kawasaki hydraulic pump, Parker valve, 1cbm bucket capacity, self-made boom, arm, bucket, chassis, platform and bucket.
Specifications:
| ITEMS | DESCRIPTION |
| Model: W2225-8 | 22 ton excavator |
| Engine System |
| Brand & Origin | ISUZU |
| Model | AA-6BG1TRP-03 |
| Rated Power | 110kw/2100rpm |
| Max. Torque | 550N.m/1600rpm |
| Idling Speed | 950rpm |
| Engine Displacement | 6.494L |
| Cylinder No.-Bore/Stroke | 6*105*125 |
| Engine Oil Capacity | 21.5L |
| Fuel Tank Capacity | 415L |
| Fuel Consumption Rate | 237gr/kw.g |
| Working Specifications |
| Operating weight | 22400kg |
| Bucket capacity | 1CBM |
| Max. breakout force |
| (1)Bucket digging force | 120KN |
| (2)Arm digging force | 94.5kn |
| Max.digging height | 10095mm |
| Max.dumping clearance | 7196mm |
| Max.digging depth | 6486mm |
| Max.vertical wall digging depth | 5903mm |
| Max.digging reach | 9813mm |
| Min.front swing radius | 2853mm |
| Max.pulling force | 200KN |
| Max.travel speed(double modes) | 5.2km/h |
| Max.grade ability | 70% |
|
|
| Overall dimensions |
| Length(with bucket on ground) | 9545mm |
| Width(600mm crawler shoes ) | 2980mm |
| Bucket width | 1258mm |
| Ground length (in transportation) | 9545mm |
| Height(To the top of the boom) | 2937mm |
| Height(To the top of the cab) | 3010mm |
| Counter weight ground clearance | 1094mm |
| Track gauge | 2380mm |
| Tail swing radius | 2853mm |
| Min. ground clearance | 460mm |
| Rotating platform width | 2712mm |
| Counter weight height | 2123mm |
| Crawler teeth thickness | 26mm |
| Reach from swing center to tail | 2853mm |
| Crawler ground length | 3655mm |
| Standard arm length | 2925mm |
| overall length of crawler | 4450mm |
World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.
We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.
Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.
Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.
Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
