| Price: | US $ 16.5/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | TBC-362IE-DF-D20-FC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Interface: | Rj-45 Port (Auto-Mdi / Mdi-X) Twisted Pair |
| Fiber Interface: | FC |
| Transmission Range: | 0-40km |
| Dimension (W X D X H): | 157*128*31mm |
| Ports: | 1 X 10/100base-T Port, 1 X 100base-Sx / Lx Port |
| Emission: | FCC Class a, CE Class a |
| Operating Environment: | Temperature: 0~50 Degree |
| Storage Environment: | Temperature: -40~70 Degree |
| Humidity: | 5%~90% Non-Condensing |
| Colour: | Sliver |
| Type: | Fiber Transceiver |
| Wiring Devices: | ODF |
Description

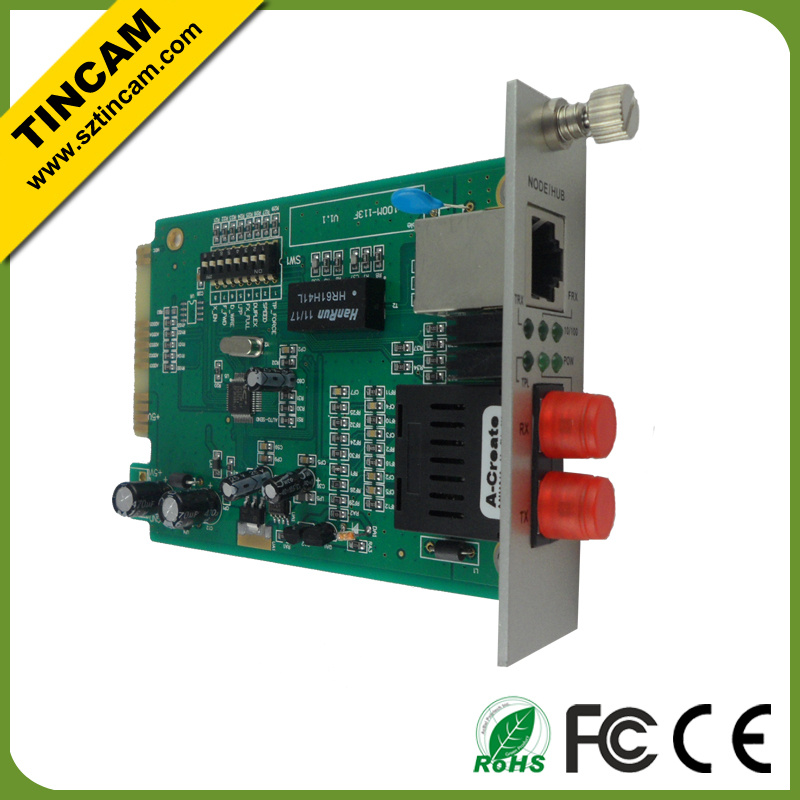

Fibre Optics Media Converter complies with IEEE802.3 and IEEE 802.3u Standards. This Fiber Media converter enables network managers to connect 10 Mbps and 100 Mbps twisted pair network segments and active equipment to fiber optic cabling more cost-effectively than ever.WDM Technology Combines Dual Fiber Cables into Single Fiber .Greatly save the Installation cost of Expensive Fiber Cable. Both a media and data rate converter, features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100 Mbps. This Fiber media converters are ideal for any premises FTTD, LAN-to-LAN or LAN-to-WAN fiber networking applications.
Featrures
1. Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full
Duplex or Half Duplex.
2. UTP port supports MDI / MDI-X auto crossover.
3. Multiple optical interface to be chosen: SC, ST or FC, singlemode / multimode
4. Supporting 1552 Byte packet
5. Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
6. Design of internal or external power supply for selection by users
Specification:
| Standard Protocol | IEEE802.3 10 Base-T standard | |||
| IEEE802.3u 10/100Base-TX/FX standard | ||||
| IEEE 802.3d standard. | ||||
| IEEE 802.3Q standard. | ||||
| Band Width | RJ 45 Port: 10/100Mbps | Optical Port: 155Mbps | ||
| Operation Mode | Full /Half duplex mode | |||
| Connectors | UTP: RJ-45 | Fiber connector: SC/ST/FC | ||
| Operation Mode | Full /Half duplex mode | |||
| LED Indicators | POWER, FPL,10/100, FRX, TRX , FDX. | |||
| Power Supply | External | DC-48V,DC24V,DC12V,DC5V | ||
| Internal | AC110-250V/50Hz | |||
| DC -32~-72V | ||||
| Power Consumption | ≤5W | |||
| Environmental Parameters | Work Temperature | 0~50 C (32 °F ~ 122 °F ) | ||
| Storage Temperature | -40~70 C (-40 °F ~ 158 °F ) | |||
| Humidity | 5%~90% non-condensing | |||
| TP Cable | Cat5 UTP cable (the max distance up to 100m) | |||
| Fiber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | |||
| 50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||||
| MTBF (Hours) | >50000 | |||
| Dimensions(mm) | External power supply | 94mm*70mm*25mm (3.7 *2.8*0.98 inch) | ||
| Internal power supply | 140mm*110mm*30mm (5.5 *4.3 *1.2 inch) | |||
| Socket Card | 157mm*128mm*31mm (6.2 *5.1 *1.2 inch) | |||
| Gross Weight | External power supply | 0.4 kg | ||
| Internal power supply | 0.8kg | |||
| Socket Card | 1.0kg | |||
| Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark | |||
