Product Specifications
| Prod Model: |
TBC-FE6012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Tincam |
| Interface Impedance: |
75ohm/Non-Balanced |
| Interface Rate: |
2048 Kb/S ± 50 Ppml |
| Ambient Temperature: |
0°c- 60°c |
| Relative Humidity: |
5% - 95% |
| Atmospheric Pressure: |
86 ~106 Kpa |
| Power Parameter: |
DC-48V |
| Power Consumption: |
< 5W |
| Dimensions: |
210*120*30 (Mm) |
| Mtbf: |
> 50, 000 Hours |
| Usage: |
Server |
| Type: |
Wired |
Product Description

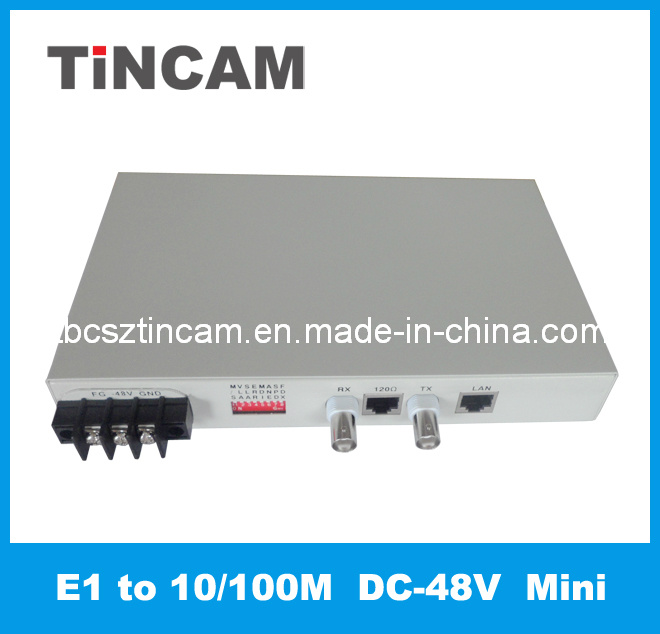

E1 to Ethernet Protocol Converter (TBC-FE6012-AC)
Features
*Supporting transparent transmission of Ethernet data over 1 to 4 E1 circuits
*In compliance with IEEE 802.3 protocol, supporting 10M/100M, full-duplex/half-duplex working mode
*Supporting transparent transmission of jumbo frames specified in IEEE 802.1Q, and supporting Ethernet switch with VLAN function
*Built-in dynamic Ethernet MAC address list (1024) in the chip, supporting local data frame filtering function
*Built-in Ethernet data frame FCS check functional module, with check alarm output
*Built-in Synchronous Dynamic Random Access Memory (SDRAM) controller
*Optional butter area size to suit different types of services
*E1 interface complies with ITU-T G. 703, G. 705, and G. 823 recommendations, but does not support the use of signaling timeslot
*Built-in clock recovery circuit and HDB3 coding/decoding circuit in E1 interface module
*Supporting HDB3 code pattern
*Supporting availability detection and automatic fault handling for 1 to 4 E1 circuits
*Perfect line alarm indication and output
*Supporting the reset of a remote system from a local system
*Supporting E1 circuit loopback function
*New peer end alarm function, enabling the user to remove faults visually
*New lightning protection function, effectively preventing the threat of thunders and lightning on communication equipment
*Supporting remote alarm function, enabling a network administrator to judge a remote E1 line fault from the local end (applicable to the carrier-class NE-2708D)
*MTBF > 50, 000 hours, in compliance with carrier-class operation requirements (applicable to the carrier-class NE-2708D)
Technical Parameters
1. E1 interface
Interface rate: 2048 Kb/s ± 50 ppml
Interface code pattern: HDB3l
Interface impedance: 75W/non-balanced
Jitter tolerance: In compliance with G. 823L
Output jitterl < 0.05 UI
2.100/10Base-T interface
Compatible with IEEE802.3/IEEEE802.3U Ethernet standardsl
Supporting 10M/100M, full-duplex/half-duplex working model
Dynamic address list storing 1024 Ethernet MAC addressl
Supporting automatic address update and local data frame filteringl functions
Operating Environment
Ambient temperature: 0° C- 60° C
Relative humidity: 5% - 95%
Power parameter: AC180V-240V (50Hz/60Hz) power consumption < 5W
Dimensions: 210´ 120´ 30 (mm)
|
E1 Interface |
Interface Standard |
C omply with protocol G. 703 |
|
Interface Rate: |
2048Kbps± 50ppm |
|
Interface Code |
HDB3 |
|
E1 Impedance |
75Ω (unbalance), 120Ω (balance) |
|
Jitter tolerance |
In accord with protocol G. 742 and G. 823 |
|
Allowed Attenuation |
0~6dBm |
|
Ethernet interface (10/100M) |
Interface rate |
10/100 Mbps, half/full duplex auto-negotiation |
|
Interface Standard |
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
|
MAC Address Capability |
4096 |
|
Connec tor |
RJ45, Support Auto-MDIX |
|
Power |
Power supply |
AC180V ~ 260V; DC – 48V; DC +24V |
|
Power consumption |
≤ 5 W |
|
Dimension |
Mini Type |
210 ( width ) X120 ( depth ) X30 ( height ) mm |
|
19 inch 1U |
483 ( width ) X138 ( depth ) X44 ( height ) mm |
|
Working environment |
Working temperature |
-10° C ~ 50° C ( 14 ° F ~ 122 ° F ) |
|
Working Humidity |
5 %~95 % (no condensation) |
|
Storage temperature |
-40° C ~ 80° C ( -40 ° F ~ 176 ° F ) |
|
Storage Humidity |
5%~95 % (no condensation) |
