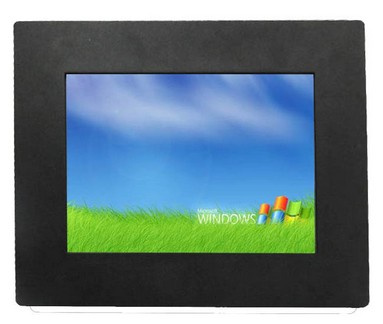

10.4 Inch All in One PC Computer for Industrial Application

Name: 10.4 Inch All in One PC Computer for Industrial Application
Brand: china-manufacturer-directory.com
SKU: 723018555
Availability: InStock
Rating: 4.8 (87 reviews)

Supplier:	Auka Industrial Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PC-1042T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Memory:	2 GB
Hard Disk:	16GB High Speed SSD
Backlight:	LED Backlight
Brightness:	250CD/M2
Contrast Ratio:	500:1
Type:	IPC
CPU Card Size:	Full-size Card
Power Supply Type:	ATX12V
Touch Screen:	Touch Screen
Hard Disk Rack Type:	Board Type
Installation:	Wall-Mounted
Application:	Industrial
Accessories:	Industrial Power Supply
Screen Size:	10.4 Inch
CPU Type:	Intel N2600+Nm10

Product Description

10.4" Fanless Panel PC
1. Intel N2600+NM10
2.16GB high speed solid state disk (optional)
3. Fanless with less noise
4. Sumsang panel, High configuration, vibration proof
5. Wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8. CE, RoHS, FCC, CCC certificates.
9. For medical panel PC, marine panel PC, for information display, embedded in industrial automatic device

Item	Project	parameter
LCD Display	Display Type/Size	Color TFT LCD/10.4 ″
	Active Display Area (mm)	211.2mm(W)×158.4mm(H)
	Display Mode	4:3
	Max Resolution	800×600
	Support Color	16.7M
	Luminance(cd/m2)	250cd/ m2
	Backlight	LED backlight
	Contrast Ratio	500:1
	Response Time	5ms
	Pixel Pitch	0.264(H)×0.264(V)
	Viewing Angle	140/110(H/V)
Processor System	Chip set	Intel N2600+NM10
	CPU	N2600
	Video	Intel GMA3650 , 640MHz
	Internal memory	DDR3 ( 800/1066/1333MHz ) Typ. 2G (Max 4G)(optional)
	Hard disk	16GB high speed solid state disk (optional)
	HDMI ports	1xHDMI Ports
	COM ports	Defaultx2 COM(optional)
	Ethernet ports	2xRJ45 Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.)
	Audio	Realtek HD ALC269Q Line-In/Line-Out/Speaker out with 1W AMP Circuit
	USB ports	Defaultx4 USB(Max x6)
Touch Type	TouchScreen Type	Resistive(4-wire/5-wire)
	Optional Touch Type	SAW, IR, Capacitive
	TouchScreen interface	Serial (RS232) or USB
Power supply	Input Voltage	DC12V 4A
	Output Rating	<= 18W
Temperature Range	Operating Temperature	-20 ~ 60ºC
	Relative Humidity	20(%RH) ~ 90(%RH)
