Product Specifications
| Prod Model: |
PC-1040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Mode: |
4:3 |
| Processor Type: |
Intel |
| Resolution: |
800 X 600 |
| Brightness: |
170CD/M2 |
| Contrast Ratio: |
500:1 |
| Touch Screen: |
Touch Screen |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| Power Supply Type: |
ATX12V |
| Accessories: |
Industrial Power Supply |
| Type: |
Embedded POS |
| Screen Size: |
10.4 Inch |
Product Description

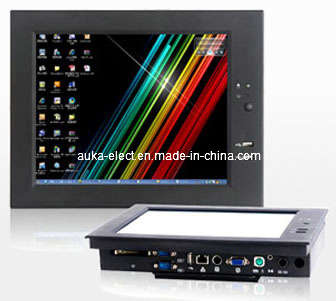

10.4" Panel PC & Industrial Computer
Functions:
LCD touch panel PC of PC-1040 series is embedded human-machine interface of high capability with INTEL core. This product adopts 10.4 inch TFT LCD screen, display resolving rate with 800*600; Fourth-line resistance touch screen; INTEL P-M CPU module etc. It is handsome and hard, good anti-vibration and electromagnetism shielded capability, and is optimal choice of various built-in application field with using multimedia ad / industry roboticized control equipment / military affairs / intelligent product etc.
Product Description
Display screen: 10.4 inch TFT LCD 2642mm
Pixel: 1440000 pixels (800*600)
Contrast: 500: 1
Brightness: 170 CD/m2
View angle: 160° /160° (horizontal / vertical)
Touch screen: Fourth-line resistance
Storage: Optional HD: IDE, 5400 RPM, up to 120G
Optional CF: 2G, up to 8G
Chipset: Intel 855 North Bridge, Intel ICH 4 South Bridge
Video card: Intel (built-in display)
Audio output: AC97 4CH
Video output: VGA\S-VIDEO
Ethernet card: 1× RJ-45 network card port
10M/100M Ethernet
Wireless communication(Optional):
WI-FI 802.11b-USB (extension)
Blue-tooth-USB (extension)
GPRS/CDMA/3G-USB (extension)
Panel interface:
Rear: 1× VGA, 1× S-VIDEO OUT, 1× USB, 1× RJ45, 2× RS232, 1× AUDIO-OUT,
1× PS/2 KEYBOARD/MOUSE, 1× CF, 1× DC-IN
Front: 2× USB
Operation system (Optional): Win98/2000/XP/2003
Specification:
CPU: Intel Pentium M1.0 GHz / 2 M Cache (Standard configure)
Memory: Standard configure 256M
(DDR 266/333/400/533 BGA) up to 1.0G
Power Supply: DC 12 V-36 V
Current Consumption: 2.3 A-3.2A
Power Consumption: <40W
Dimension: 280 mm × 210 mm × 60 mm
Weight: 2370kg (with HD 90g)
Working temperature: 0-45 degree
Storage temperature: -20-60 degree
Working humidity: 10%-85%
Storage humidity: 10%-90%
Function:
WI-FI WLAN (optional)
Wired network control
Software control equipment
Touch screen control
Special software installation
One pull more screen display output control
Special multi-media software control
Accessories:
Power supply adapter 1 piece
Fixed screw 4 piece
PS/2 mouse/keyboard connection cable 1 piece
Fixed bracket 1 piece
Driver disk of mainboard 1 piece
Operation instruction 1 piece
