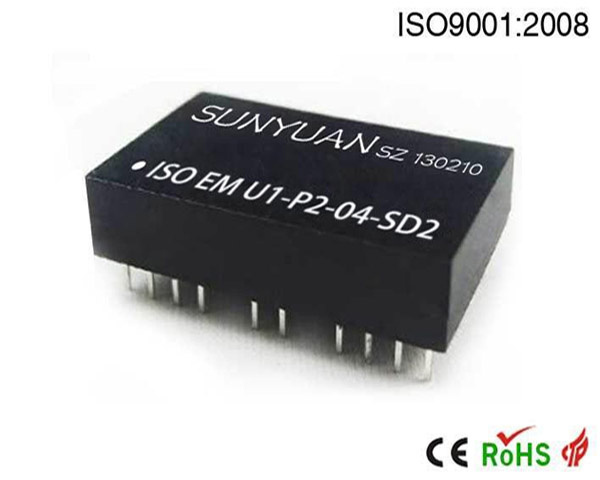

Shenzhen Sunyuan Technology Co., Ltd. >> 0-10V/0-5V/4-20mA Isolated Converter with Distribution Power(Zero/Gain Adjustment.) Zero and Gain Adjustable Isolation Transmitter with Distribution Power input

0-10V/0-5V/4-20mA Isolated Converter with Distribution Power(Zero/Gain Adjustment.) Zero and Gain Adjustable Isolation Transmitter with Distribution Power input

Name: 0-10V/0-5V/4-20mA Isolated Converter with Distribution Power(Zero/Gain Adjustment.) Zero and Gain Adjustable Isolation Transmitter with Distribution Power input
Brand: china-manufacturer-directory.com
SKU: 752136455
Availability: InStock
Rating: 4.7 (31 reviews)

0-10V/0-5V/4-20mA Isolated Converter with Distribution Power(Zero/Gain Adjustment.) Zero and Gain Adjustable Isolation Transmitter with Distribution Power input

Supplier:	Shenzhen Sunyuan Technology Co., Ltd.
Price:	US $ 20/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ISOEM U(A)-P-O-SD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Isoem U(a)-P-O-SD
Input:	1-5V,0-10V,0-75mv,0-2.5V,0-10A,0-20mA,0-30mA etc.
Output:	4-20mA,0-20mA,0-5V,0-10V,1-5V etc.
Isolation Method:	Electromagnetic Isolation
Isolation Voltage:	3000V
Package:	SIP 24pin
Main Circuit Type:	Current
Application:	PLC and Dcs or The Other Equipment Module Input at
Adjustable:	Zero Gain Adjustment
Industrial Temperature:	-45~+85 Centigrade

Product Description

0-10V/0-5V/4-20mA Isolated Converter with Distribution Power(Zero/Gain Adjustment.) Zero and Gain Adjustable Isolation Transmitter with Distribution Power input

Features:
Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
Power distribution in input end for function expansion: 5V,12V,15VDC
Isolated amplification and conversion on analog signals: 0-75mV/0-10V/0-1mA/4-20mA
Precision grade:0.1, 0.2; nonlinearity grade (in full measuring range) <0.2%.
Isolation power among auxiliary power, analog input, output: 3KVDC
Auxiliary power: 5V,12V,15V,24VDC,etc single power.
Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
Low cost, compact DIP 24Pin, UL94V-0 standard flame retardant package.
Industrial Temperature range: -20 ~ +70 ºC
Applications:
Isolated power distribution for passive sensors and signals acquisition and transmission.
Distribute power for pre-amplification, electric bridge and other circuits to collect signals.
Isolated data acquisition of analog signals from PLC, DCS.
Analog signal GND wire anti-interference and data isolated acquisition.
DC current/voltage signal isolation, conversion and amplification.
Long distance isolated transmission of industrial site signals.
Meters, instruments and sensors signal acquisition and transmission.
Power monitoring control, medical equipments isolated safety bar.

Model Selection:

ISO EM U(A)- P- O-SD

Input Voltage /Current

U1:0-5V A1: 0-1mA

U2:0-10V A2: 0-10mA

U3:0-75mV A3: 0-20mA

U4:0-2.5V A4: 4-20mA

U8:Customized A8:Customized

Auxiliary Power

P1:DC24V P2:DC12V

P3:DC5V P4:DC15V

P8:Customized

S - Distribution Power Volt. Value

Output D: DIP24 Package, Zero & Full Scale adjustable

O1: 4-20mA O2: 0-20mA SD1: 9V SD2: 15V

O4: 0-5V O5: 0-10V SD3: 24V SD4: 5V

O6: 1-5V O8: Customized SD8: Customized

Max. Rated Value:
(If the product operates in the max. rated values in the long-term, may affect the durability, if exceed the max. values, may cause unrepairable damage.)

Continuous Isolation Voltage 3KVDC/rms

Power supply Volt. Input Range: ±25%Vdd

Operating Temperature - 45ºC ~ + 85ºC

Wielding Temperature (<10S) +300ºC

Voltage Signal Output Min. Load 2KΩ

General Parameters:

Precision, Linearity Error Grade---------- 0.1, 0.2	Backlash ---------- < 0.5%
Auxiliary Power Supply----- 5V,12V,15V,24VDC	Isolation-------Among Signal Input/Output/Auxiliary Power supply
Operating Temp. ---------- -20 ~ +70ºC	Insulation Resistance ---------- ≥20MΩ
Operating Humidity-------10~90%(No condensation )	Withstand Volt.-------3KV(60HZ/S), leakage current: 1mA
Storage Temp. ---------- -45~ +85ºC	Impulse Volt. Test---------- 3KV, 1.2/50us(Peak Value)
Storage Humidity---------10~95%(No Condensation)

Technical Parameters:

Items			Testing Conditions	Min.	Typical Value	Max.	Unit
Isolated Voltage			1min		3000		VDC
Gain					1		V/V
Gain Temp. Drift					50		ppm/ºC
Non-linearity					0.1	0.2	%FSR
Gain Adj. Potentiometer (Adj.)					50K		Ω
Zero Adj. Potentiometer(ZA)					10K		Ω
Signal Input	Volt.			0		15	V
Signal Input	Current			0		30	mA
Input Offset Volt.					2	5	mV
Input Impedance	Volt.				1		MΩ
Input Impedance	Current			50	250	1K	Ω
Distribution Power Supply Output	Volt.			5		15	V
	Current				20		mA
	Ripple Wave				100		mV
	Precision				2		%
Signal Output	Volt.			0		15	V
	Current			0		20	mA
Load Capacity	Volt.		Vout=10V		2		kΩ
Load Capacity	Current			0	350	750	Ω
Frequency Response					1	20	KHz
Signal Output Ripple Wave			No filtering		10	20	mVRMS
Signal Volt. Temp. Drift						1	mV/ºC
Auxiliary Power		Volt.	Customized	3.3	12	24	VDC
		Consumption			0.5	1	W
Operating Temp.				-40		85	ºC
Storage Temp.				-55		105	ºC

Note: For the special requirements on the load capacity of voltage signal and current signal, please do notify us when placing orders.

Output	Output Load Capacity	Response
4-20mA	≤350Ω, Max. 750Ω (If the 350Ω load is required, please notify us)	≤1mS
0-20mA

0-5V	≥ 2KΩ
0-10V
1-5V

Product Model Selection:
       ISO EM U(A)- P- O- SD



Input Voltage /Current
   U1:0-5V       A1: 0-1mA
   U2:0-10V      A2: 0-10mA
   U3:0-75mV     A3: 0-20mA
   U4:0-2.5V      A4: 4-20mA
   U8:Customized  A8:Customized

Auxiliary Power
   P1:DC24V   P2:DC12V
   P3:DC5V    P4:DC15V
   P8:Customized
                                                        S - Distribution Power Volt. Value
Output                                             D: DIP24 Package, Zero & Full Scale adjustable
   O1:  4-20mA       O2:  0-20mA                          SD1:  5V       SD2: 12V
   O4:  0-5V         O5:  0-10V                           SD3:  9V       SD4: 15V
   O6:  1-5V         O8:  Customized                       SD8: Customized

Model Selection Examples:
E.g.:1: Input signal: 0-5V, Output Signal:0-5V,  Auxiliary Power:24VDC,  Power Distribution: 15V / DIP24Package    Zero and Full Scale adjustable.
        Product Model NO: ISO EM-U1-P1-O1-SD4

E.g.:2: Input signal: 4-20 mA, Output Signal:4-20mA,  Auxiliary Power:24V; Power Distribution:12V / DIP24Package  Zero and Full Scale adjustable.
         Product Model NO: ISO EM-A4-P1-O1-SD2
