Product Specifications
| Prod Model: |
4-20mA to frequency pulse signal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Method: |
Physical Treatment |
| Usage: |
Industrial |
Product Description
V/F I/F transmitter (V/F I/Fconverter)Selection Example:
Example 1:Signal Input: 0-5V;Signal Output :0-10KHz (5V voltage pulse);Power Supply:9-36VDC;
Model:JSD TAF-1001S-1W2
Example 2:Signal Input:4-20mA;Signal Output:0-5KHz (Open collector);Power Supply:24VDC;
Model:JSD TAF-1001S-D14
Example 3:Signal Input:4-20mA;Signal Output:0-5KHz (5V voltage pulse);Power Supply:15VDC;
Model:JSD TAF-1001S-D21
Example 4:Signal Input:1-5V;Signal Output:0-15KHz (5V voltage pulse);Power Supply:36VDC;
Model:JSD TAF-1001S-UWU
Example5:Signal Input:0-10V;Signal Output:1-5KHz (Open collector);Power Supply:9VDC;
Model:JSD TAF-1001S-2W6
V/F I/F transmitter Features:
Low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / Celsius)
Wide industrial class operation temperature (-45~+85Celsius)
High reliability (MTBF>50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
Passed CE Certificate
V/F I/F transmitterGeneral Description:

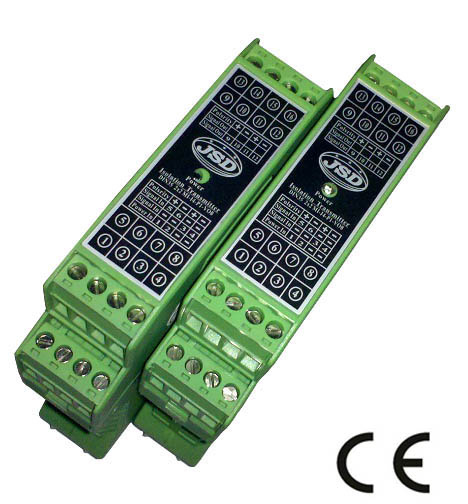

Jie Shengda Technology DIN35 1x1 OI-V(I)x-Px-FOx series analog to frequency signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, user can install it directly. If the product fails to meet user, we provide customized
Shenzhen Jie Shengda Technology Co., Ltd. is a collection development, production, trade as one of the high-tech enterprises, it has been dedicating to design and produce AC-DC power modules, DC-DC power modules, high voltage power modules, Medium Voltage Modules, micro-power DC-DC converter, isolation transmitter, isolation amplifier, signal isolation, 4-20mA Isolation Amplifier, 4-20mA series, distributors series, Splitters series, conditioners, two-wire isolation amplifier, active isolation amplifier (optocoupler isolation and magnetic isolation two series), mV-level small signal isolation amplifier, isolation power transmitter, PT100 RTD temprature signal isolation transmitter, power isolation transmitter, fence, V/F frequency pulse isolation transmitter, F/V frequency pulse isolation transmitter, resistors (displacement) signal isolation transmitter, switch signal isolation transmitter, pressure isolation transmitter, non-isolated amplifier, data acquisition converter(D/A converter, A/D converter, RS-232/RS-485) high-tech enterprises. Self-developed products meet international standards, products performance reliability and through EMC Certification (CE certification), the input and output signals are adopting international standard signal designs. (eg: 4-20mA/0-20mA/0-10V/0-5V/1-5V/0-10mA/0-100mV, etc. ) compatible with the vast majority of domestic and foreign well-known brands, our products categories covering more than thousands, is industrial automation applications analog signals, digital signals hybrid integrated circuit development, and manufacturing companies.
