Product Specifications
| Prod Model: |
DIN35 1X1 MI-I4-P1-IO1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
94X47X21.83mm |
| Function: |
Automatic Control |
| Certification: |
CE |
| Task: |
Adjust |
| Structure: |
Open-Loop |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
| Material: |
Stainless Steel |
| Customized: |
Customized |
| Condition: |
New |
Product Description

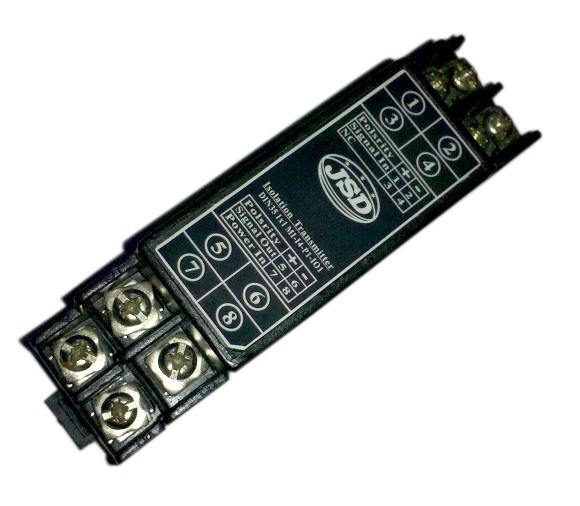

4-20mA isolation transmitter (1 in 1 out DIN35 rail mounting) Selection Example:
Example1:input 14-20mA;output 1:4-20mA;power supply:24VDC;model:DIN35 1x1 MI-V2-P1-IO1
Example2:input 1::0-10VDC;output 1:4-20mA;power supply:24VDC;model:DIN35 1x1 MI-V2-P1-IO1
Example3:input 1:0-5VDC;output 1:0-10VDC;power supply:24VDC;model:DIN35 1x1 MI-V1-P1-VO5/IO1
4-20mA isolation transmitter (1 in 1 out) GENERAL DESCRIPTION:
Jie Shengda Technology DIN35 1x1 MI-V(I)x-Px-V(I)Ox active precision isolation transmitter is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room, PLC,PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift. Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.
4-20mA isolation transmitter (1 in 1 out DIN35 rail mounting) Features:
Small size, low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
1-input-1-output ,isolated between channels
High accuracy (0.1% F.S,0.2% F.S)
High linearity (0.1% F.S )
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / ºC)
Wide Industrial class operation temperature (-45~+85 ºC)
High reliability (MTBF> 50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input and output (0~5V/1-5V/0~10V/0 ~±10V /4~20mA/0~± 20mA/0-100mV etc. optional)
isolation transmitter Application:
DC current/voltage signal isolation, conversion and amplification
Analog signal ground interference suppression and analog isolation, acquisition
4~20mA/0~5V/1~5V/0~±10V/0~±20mA sensor signal isolation, transformation and signal distribution,
instrumentation and sensor signal transceiver
power isolation monitoring industrial site
Analog signal data isolation, acquisition, conversion, and long-distance transmission
industrial field signal isolation and conversion, and long-distance transmission without distortion
power monitoring, medical equipment isolation barrier
overcome inverter, large motors, power equipment, acquisition systems, DCS and PLC Field interference
