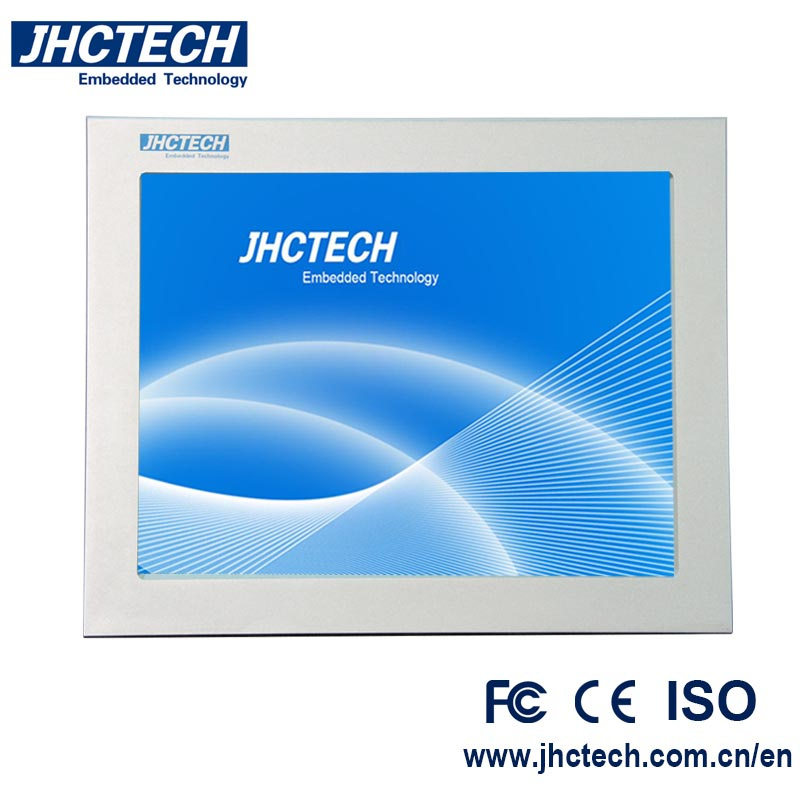

Product Specifications
| Prod Model: |
IPPC-1213T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Intel Atom D2550 |
| Dimensions: |
(W × H ×d) 315 X 252 X 68.2mm |
| N.W: |
5.0kg |
| RAM: |
2* DDR3 Slot, up to 4G DDR3 1066 RAM |
| Expansion Slot: |
1*Mini PCI-E, PCI-E+ USB, Jumper for Msata (Option |
| Display: |
1*VGA & 1* HDMI Interface |
| HDD: |
1 *2.5" SATA /HDD |
| COM&USB: |
4COM&4USB |
| Structure: |
12" TFT LED with 5 Wire Resistive Touch Screen |
| Maximum Resolution: |
1024*768 |
| Screen Type: |
Resistance Screen |
| Operating System: |
Windows |
| Memory: |
4GB |
| Hard Disk Capacity: |
≥128G |
| CPU Core: |
Single-Core |
| Webcam: |
Without Webcam |
| Built-in Bluetooth: |
Without Bluetooth |
| Built-in Microphone: |
Without Microphone |
| Card Reader: |
Card Reader |
| Fingerprint: |
Without Fingerprint |
| Screen Size: |
12'' |
| Network Mode: |
Gigabit Ethernet |
| Battery Capacity: |
No |
| Rear Camera Pixel: |
No |
Product Description
Our Company
JHCTECH is the world's leading manufacturer of industrial computers, providing reliable solutions and value-added services system for intelligent infrastructure, intelligent manufacturing and intelligentservice.
We focuses on the development of embdedded products and systems application platform, provide one-stop solution for intelligent infrastructure, manufacturing and service.
Features
Ultra low power consumption,
Fanless cooling design
15″TFT LED with 5 wire resistive touch screen
Intel® Atom™ D2550 1.86 G HZ Processor
Up to 4GB DDR 3 Memory
2X LAN, Intel 82574L Chipset
4USB/4COM/AUDIO,1X 2.5"SATA HDD bay
Aluminum /fan less/low power consumption
Lightweight solid aluminum
SYSTEM | CPU | Intel® Atom™ D2550 1.86 G HZ |
| MEMORY | 2* DDR3 Slot, up to 4G DDR3 1066 RAM |
| EXPANSION | 1*MINI PCI-E, PCI-E+ USB, Jumper for Msata (Option) |
| DISPLAY | 1 x VGA & 1* HDMI interface |
| M/K | USB |
| Chipset | Intel NM10 chipset |
| HDD | 1 *2.5" SATA /HDD |
| SERIAL PORTS | 4x serial ports, 1 x RS-232/422/485 (COM2) |
| USB | 4x USB 2.0 interfaces |
| CONTROL | power light*1,reset switch *1 |
| LED INDICATORS | Power light ×1,HDD light ×1 |
| WATCH DOG TIMER | system timer reset/interruption |
| POWER | P o w e r | DC to DC Converter input voltage: 12 VDC |
| AC to DC Converter input voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz |
| OS | DOS /Windows |
| MECHANICAL | STRUCTURE | 12″TFT LED with 5 wire resistive touch screen |
| COLOUR | Slivery |
| INSTALLATION | on-wall , desktop, VESA |
| Maximum resolution | 1024 x 768 |
| WEIGHT | 6.2Kg |
| ENVIROMNTAL | OPERATION TEMPERATURE |
-10 ~ 65ºC |
Color depth | 16.7M |
| Lattice spacing | 0.240*0.240 |
| Visual angle | 80°(left ), 80°(right ), 60°(up), 80°(down) |
| Backlight life | 50,000 Hours |
| EMC | CE /FCC A class ,UL |
| ORDER INFORMATION |
| IPPC-1213T |
| 12.1″TFT LED with 5 wire resistive touch screen, Intel® Atom™ D2550 1.86 G HZ Processor,VGA&HDMI,2X LAN, Intel 82574L Chipset,4USB/4COM/AUDIO,1X 2.5"SATA HDD bay |
| DC to DC Converter input voltage: 12 VDC |
| AC to DC Converter input voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz |
| WBESITE: WWW.JHCTECH.COM.CN/EN |
