Product Specifications
| Prod Model: |
MH9106 |
| Markets: |
North America,South America,Southeast Asia,Mid East,Eastern Asia |
| Coating: |
Painting |
| Type: |
Coating Production Line |
| Substrate: |
Wood, Metal,Glass, Ceramic, etc. |
Product Description

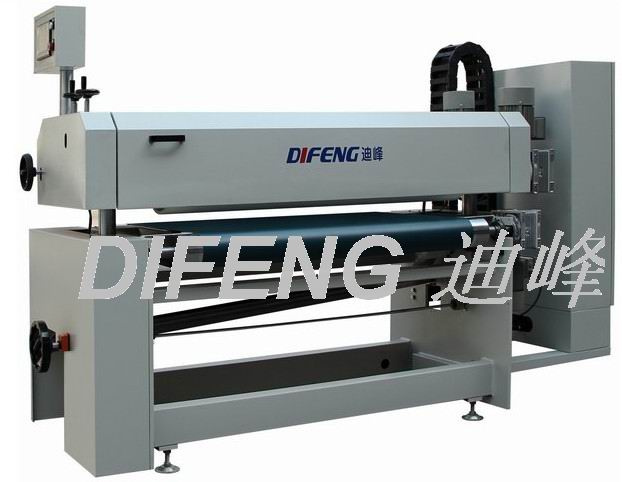

1300mm Precise Coating Machine with Single roller
Scope of application:
To process paint coating on base coat, top coat or staining for panel furniture, decorative panel, flooring, cabinet side panel, flush door, craftwork panel, window-shades, metal plate, etc.
Roller structure:
Roller adopt with PU rubber, rubber roller diameter 240mm, steel roller diameter 180mm, the rubber roller and the steel roller equip import blade and angle adjusted by worm wheel speed reducer to make sure the coating more evenly.
Rollers equipped with quick knockdown structure, easy replacement.
Machine frame & lifting structure:
Machine frame was welded using 20mm thick steel, drilling and grooving precisely by imported heavy duty machine to make sure it is strong enough and stable.
Lifting structure with patent design to guild rubber roller lifting gapless, roller will not shape when coating to ensure the coating with good quality in high speed.
Driving device:
Rubber roller, steel roller, conveyor belt and feeding roller is controlled by individual imported motor and frequency drive, to improve the coating quality and easy operation, so as to get the best surface smoothness and saturation by different speed adjustment and precise control of the paint capacity.
Feeding structure:
Machine equip with special feeding deviation adjust structure, imported seamless corrosion resist feeding PU belt.
Scope of application:
UV, PU, NC, Water based paint, Fluorocarbon paint Etc.
DIFENG Machinery company is offering the solution in painting / coating / spraying / drying area for customer. We applies the Germany, Italy and other countries of advanced coating technology platform, developed with independent intellectual property rights of automation coating equipment. Adhering to the "product quality is our survival foundation and creating the value for customers is our pursuit of the ultimate goal", it is committed to professional automatic spraying equipment, surface coating equipment, plane sand light equipment, paint drying equipment research and development, manufacture and application, in view of the customer different paint, base material, construction technology and quality requirements etc, professional development, production matching automatic painting line, provide environmental protection, high efficiency, high quality production requirements.
We has more than ten years of in design, in production, in sales and after-sales service team, to provide NONE distance and comprehensive technical support, advanced process scheme and the high quality post-sale service, realize the company and customer double surplus, got customers consistent high praise. Free technical support, training and after-sales service is di peak of permanent commitment.
