Product Specifications
| Prod Model: |
G1GD14C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Type: |
Progressive Scan CMOS |
| Resolution: |
4384 X 3288 |
| Sensor Model: |
Mt9f001 |
| Sensor Size: |
2/3" |
| Max. Frame Rate: |
13fps@1280X960 |
| ADC: |
12 Bit |
| Dynamic Range: |
63.5 dB |
| Exposure Time: |
1.6ms~17.9min |
| Read-out Noise: |
7e- |
| IR Cut Filter: |
Integrated in C-Mount 18mm X 18mm |
| Image Sensor: |
CMOS |
| Megapixel: |
10.0-20.0MP |
| Screen Size: |
2-3" |
| Optical Zoom: |
Fixed Focus |
| Type: |
SLR |
| Memory Card Type: |
PC Memory |
| Lens: |
C/CS Mount |
Product Description

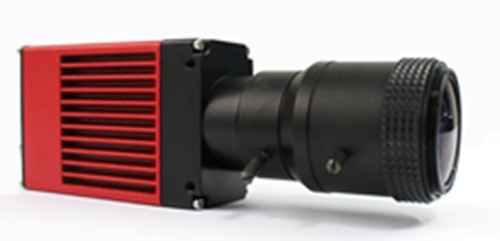

G1GD14C
14MP color cmos Microscope GigE Cameras
JPLY GigE CMOS cameras G1GD series is a newly developed product, with Gigabit Ethernet interface (high resolution, high speed, long distance transmission). Compared with G1UD series, G1GD series offers higher speed of the preview (up to 130fps@640x480). It is ideal for various applications in industry, especially in complex electromagnetic environment. The G1GD series support multi-camera synchronization, as well as online work without PC connection. It can be used in image processing and analysis by collaborating with the PLC (Programmable Logic Controller). SDK and source code of the Demo are available for secondary development
Specifications of product:
Model G1UD01M
Digital interface Gigabit Ethernet
Sensor Type Progressive scan CMOS
Resolution 4384 x 3288
Sensor model MT9F001
Sensor size 1/2.3"
Pixel size 1.4μm x 1.4μm
Max. Frame rate 13fps@1280x960
ADC 12 bit
Dynamic range 63.5 dB
Exposure time 1.6ms~17.9min
Read-out noise 7e-
ROI 4 regions/frame
DSP frequency 400MHz
On board memory 256MB
I/O trigger programmable, 6 channels
Lens Mount C/CS mount
Color/Mono Color
IR cut filter integrated in C-mount 18mm x 18mm
Voltage supply USB 2.0 powered
Power consumption 2.8W, 1.3W standby
Ambient condition -30° C~70° C
Storage condition -30° C~70° C
Software SpectrumSee
SDK available
Operation System Windows 2000/XP/Vista/7 (32&64 bit)
Weight Approx. 265g (customizable housing case)
Feartures of product:
ROI: 4 regions per frame
400MHz DSP frequency
Output without interpolation
256MB on-board memory
High-definition, high-quality color reproduction
6 channels I/O, programmable trigger
SDK available, support Windows 7, 32/64bit OS
Customizable
Application:
Machine vision and inspection
Industrial Inspection and measurment
Sample is available if customer pay sample cost and freight, will pay back one-way shipping fee if customer agrees to buy.
|
Voltage supply: |
USB 2.0 powered |
|
Power consumption: |
approx. 2W |
|
Ambient condition: |
0° C~60° C |
|
Storage condition: |
45~85% |
|
Software: |
SpectrumSe image analysis software |
|
SDK: |
available |
|
Operation System: |
Windows 2000/XP/Vista/wind 8 (32& 64 bit) |
|
Weight: |
approx. 240g |
