Product Description

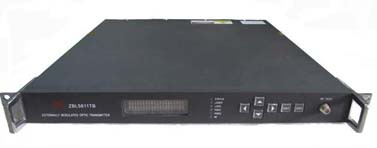

ZBL5811TA 1550nm external modulation optical transmitter is a high-end product that is applied to CATV optical network for long-time stable operation. It optimizes the optical modulator circuit and pre-distortion circuit to provide excellent performance.
Features
1 The external modulator and the laser are both imported from USA or Japan
2 Perfect SBS suppress circuit and adjustable SBS in 13, 16, 18, apply for different types of CATV network
3 Excellent pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard
4 AGC and MGC function
5 Automatically temperature control on shell
6 The function of laser monitoring, fault alarm and network management by the inner software
7 RJ45 and RS232 standard interface
8 Double power supply that can be switched automatically.
|
Item |
Units |
Value |
|
Optical and RF Parameters |
|
Wavelength |
nm |
1550± 10 |
|
Output Power |
dBm |
1*5, 1*6, 1*7, 1*9, 2*5, 2*7 , 2*6, 2*9 |
|
Optical Return Loss |
dB |
≥ 60 |
|
Connector |
/ |
FC/APC Or SC/APC |
|
Bandwidth |
MHz |
45-862 |
|
Input Level |
dBmV |
23± 5 AGC |
|
Flatness |
dB |
≤ ± 0.75 45~862 MHz |
|
Return Loss |
dB |
≥ 16 45~862MHz |
|
Input Impedance |
Ohm |
75 |
|
CNR* |
dB |
≥ 52 |
|
CTB* |
dB |
≤ -65 |
|
CSO* |
dBm |
≤ -65 |
|
SBS |
dBm |
≥ 16.0 13, 16, 18 |
General Parameters
|
|
Power Supply |
VAC/VDC |
90~265/ -48 |
|
Power Consumption |
W |
≤ 50 |
|
Working Temperature |
C |
0~50 |
