Product Specifications
| Prod Model: |
ZBL-ON-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
Product Description

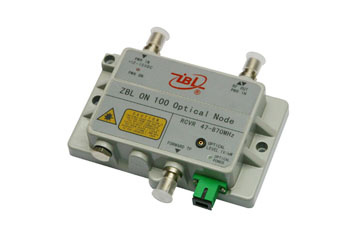

ZBLON100 is a new generation optical node with imported excellent module that used for the FTTX and CATV network system. Its the ideal terminal equipment for delivering video (digital or analog) as well as Highspeed data services over HFC network with one optical receiving module. ZBLON100 Mini Node is Very compact in size with high performance and high reliability.
Features
1. Excellent linearity, return losses and flatness
2. Low power consumption
3. Compact in size
4. External regulated power supply
5. Frequency range of 47 to 870MHz for HFC network
6. Voltage supply: 12-15V(DC)
7. One output with an impedance of 75Ω
8. Adopting GaAs technology for amplifier
9. Optical connector: SC/APC
10. Display and measurement of optical power Strong/Weak With -20dB forward testing ports
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN |
TYP |
MAX |
UNIT |
|
Forward Receiver |
|
λ |
Optical Wavelength |
|
1500 |
1550 |
1600 |
nm |
|
Vopt. in |
Monitor Voltage |
λ =1550 |
|
1 |
|
V/mW |
|
Pin |
Optical Input Power |
Continuous |
0.25 |
1 |
2 |
mW |
|
F |
Frequency Range (optional) |
|
54 |
|
870 |
MHz |
|
FL |
Flatness of Frequency Response |
f=54 to 870MHz |
|
± 0.5 |
|
dB |
|
S22 |
Output Return Loss |
|
16 |
18 |
|
dB |
|
Lo |
Reference Output Level |
|
|
25 |
|
dBmV |
|
|
Optical Input Return Losses |
|
45 |
|
|
dB |
|
CTB |
CTB |
59 Pal-D channel loading, |
|
|
-65 |
dB |
|
CSO |
CSO |
|
|
-60 |
dB |
|
f |
Equivalent Noise Input |
f=55MHz |
|
|
7 |
pA/Hz |
