Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Transmitter |

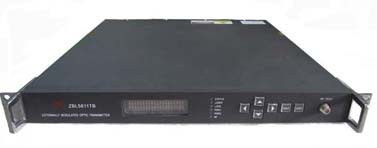

Product Description
1. Imported low-noise DFB laser, High linear LiNbO3 external modulator
2. Excellent pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard
3. Perfect SBS suppress circuit and adjustable SBS in 13, 16, 18
4. AGC and MGC function
5. Automatically temperature control
6. Intelligent fan control, extend the life of fan, reduce unnecessary power consumption
7. RJ45 and RS232 standard interface
8. VFD display, humanized button
|
Item |
Units |
Value |
|
Wavelength |
nm |
1550± 10 |
|
Output Power |
dBm |
1*5, 1*6, 1*7, 1*9, 2*5, 2*6, 2*7, 2*9 |
|
Optical Return Loss |
dB |
≥ 60 |
|
Connector |
/ |
FC / APC Or SC / APC |
|
Bandwidth |
MHz |
45-862 |
|
Input Level |
dBmV |
23± 5 AGC |
|
Flatness |
dB |
≤ ± 0.75 45~862 MHz |
|
Return Loss |
dB |
≥ 16 45~750MHz |
|
Input Impedance |
Ohm |
75 |
|
CNR* |
dB |
≥ 5 0 |
|
CTB* |
dB |
≤ -6 3 |
|
CSO* |
dBm |
≤ -6 3 |
|
SBS |
dBm |
≥ 16.0 13, 16, 18 |
|
Power Supply |
VAC/VDC |
90 ~ 265/ -48 |
|
Power Consumption |
W |
≤ 50 |
|
Working Temperature |
º C |
0 ~50 |
