Product Description

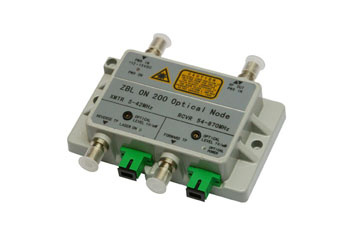

ZBLON 200 is a new generation optical node with imported excellent module that used for the bi-directional optical fiber And CATV network system. It's the ideal terminal equipment for delivering video (digital or analog) as well as highspeed Data services over HFC network with one optical receiving module and one transmitting module. ZBL-ON-200 Mini Node Is very compact in size with high performance and high reliability.
Features
1. Excellent linearity, return losses and flatness
2. Low power consumption
3. Compact in size
4. External regulated power supply
5. Frequency range of 5 to 870MHz for HFC network
6. Voltage supply: 12-15V(DC)
7. One output with an impedance of 75Ω
8. Adopting GaAs technology for amplifier
9. Optical connector: SC/APC
10. Display and measurement of optical power "Strong/Weak" With -20dB forward/reversed testing ports
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN |
TYP |
MAX |
UNIT |
|
Forward Receiver |
|
λ |
Optical Wavelength |
|
1500 |
1550 |
1600 |
nm |
|
Vopt. in |
Monitor Voltage |
λ =1550 |
|
1 |
|
V/mW |
|
Pin |
Optical Input Power |
Continuous |
0.25 |
1 |
2 |
mW |
|
F |
Frequency Range (optional) |
|
54 |
|
870 |
MHz |
|
FL |
Flatness of Frequency Response |
f=54 to 870MHz |
|
± 0.5 |
|
dB |
|
S22 |
Output Return Loss |
|
16 |
18 |
|
dB |
|
Lo |
Reference Output Level |
|
|
25 |
|
dBmV |
|
|
Optical Input Return Losses |
|
45 |
|
|
dB |
|
CTB |
CTB |
59 Pal-D channel loading, |
|
|
-65 |
dB |
|
CSO |
CSO |
|
|
-60 |
dB |
|
f |
Equivalent Noise Input |
f=55MHz |
|
|
7 |
pA/Hz |
|
Return Transmitter |
|
λ |
Optical Wavelength |
|
1290 |
1310 |
1330 |
nm |
|
Wout |
Optical Output Power |
|
0.5 |
1 |
2 |
mW |
|
Vopt. in |
Monitor Voltage |
λ =1310 |
|
1 |
|
V/mW |
|
LRin |
RF Input Level |
|
|
40 |
|
dBmV |
|
F |
Frequency Range (optional) |
|
5 |
|
42 |
MHz |
|
FL |
Flatness of Frequency Response |
f=5 to 42MHz |
|
± 0.5 |
|
dB |
|
S11 |
Input Return Loss |
f=5 to 42MHz |
16 |
18 |
|
dB |
|
|
Optical Output Return Loss |
|
45 |
|
|
dB |
