Shanghai YingXin World Machinery Co., Ltd. >> 15tons Digging Excavator with Isuzu Engine

15tons Digging Excavator with Isuzu Engine

Name: 15tons Digging Excavator with Isuzu Engine
Brand: China-Manufacturer-Directory.com
SKU: 773495105
Availability: InStock
Rating: 4.8 (111 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 70000-80000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W2150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Applications:	Earth Moving or Construction Excavator
Excavator:	Hydraulic Excavator
Engine Brand:	Isuzu
Hydaulic Pump:	Kawasaki
Main Valve:	Parker
Engine Power:	73kw
Cabin:	Air Conditioned
Track Type:	Steel
Track Width:	500mm
Attachments:	Hydraulic Hammer, Quick Hitch
Type:	Crawler Excavator
Size:	Medium-Sized
Certification:	CE
Condition:	New

Product Description

Digging Excavator

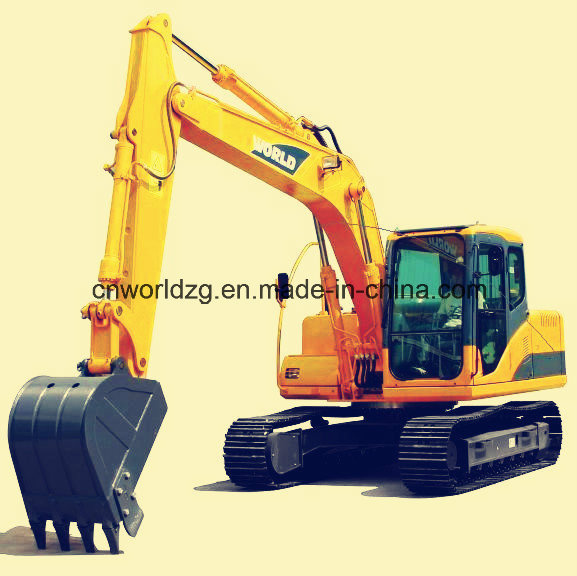

W2150 is a 15ton middle size excavator with 0.53 cubic meters bucket. The excavator adopts the original ISUZU BB-4BG1TRP engine which can supply 72.7kw power at the rated speed of 2200rpm. Automatic idle speed prevents unnecessary fuel consumption. The well known Kawasaki brand hydraulic pump supplies larger displacement to ensure the excavator stronger power and higher efficiency. Parker brand valve, Doosan brand travel motor and Sungbo brand swing motor match the pump perfectly. It is really a economic machine with high quality. It was widely used in urban construction and building.

Specifications

Engine System
Brand & Origin	ISUZU(Japan)
Model	BB-4BG1TRP
Rated Power	72.7/2200 kw/rpm
Max. Torque	337.6/1600 Nm/rpm
Idling Speed	1000rpm
Engine Displacement	4.329 L
Cylinder No./-BorexStroke	4-105mmx125mm
Engine Oil Capacity	13.2L
Fuel Tank Capacity	240L
Fuel Consumption Rate	240 g/kw.h or less
Working Specifications
Operating weight	13600(Kg)
Bucket capacity	0.53(m3)
Max. breakout force
(1)Bucket digging force	91.8(KN)
(2)Arm digging force	65.3(KN)
Max. digging height	8640(mm)
Max. dumping clearance	6139(mm)
Max. digging depth	5532(mm)
Max. vertical wall digging depth	5102(mm)
Max. digging reach	8330(mm)
Min. front swing radius	2500(mm)
Max. pulling force	113(kN)
Max.travel speed(double modes)	3.1/5.3(km/h)
Max. grade ability	70%
Overall dimensions
Length(with bucket on ground)	8330(mm)
Width	2490(mm)
Bucket width	854(mm)
Ground length (in transportation)	7718(mm)
Height(To the top of the boom)	2800(mm)
Height(To the top of the cab)	2705(mm)
Counter weight ground clearance	885(mm)
Track gauge	1990(mm)
Tail swing radius	2380(mm)
Min. ground clearance	392(mm)
Rotating platform width	2490(mm)
Counter weight height	930(mm)
Crawler teeth thickness	25(mm)
Reach from swing center to tail	2380(mm)
Crawler ground length	2840(mm)
Standard arm length	3132(mm)
overall length of crawler	7525(mm)
