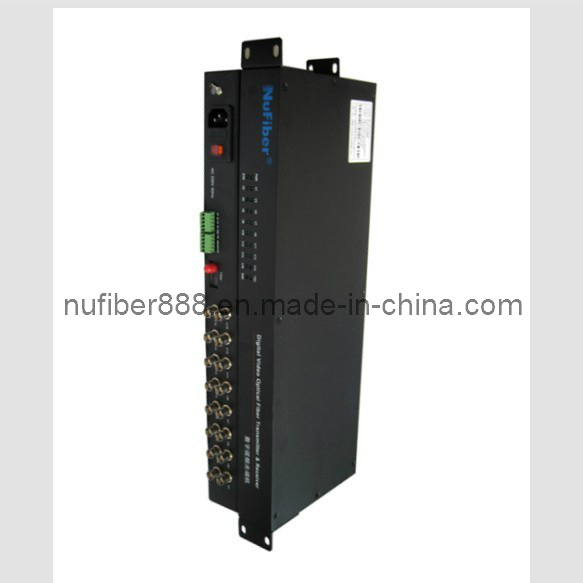

16-Channel Digitally Encoded Video with 1 Reverse Data Transceiver

Name: 16-Channel Digitally Encoded Video with 1 Reverse Data Transceiver
Brand: china-manufacturer-directory.com
SKU: 714182005
Availability: InStock
Rating: 5 (71 reviews)

Supplier:	Shenzhen Nufiber Technology Co., Ltd.
Price:	US $ 20-120/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	WTB-16V1D-T/R-S20
Markets:	South America,Southeast Asia,Africa,Mid East
Signals Of Video:	16
Signals Of Data:	1
Type:	Fiber Transceiver

Product Description

System Design
WTB-8V1D-T/R-S20 can transfer 8-Channel digital composite video and 1 reverse data. It is designed for applications in the control of PTZ cameras.

Stand-alone or rack-mount.
All units of WTB-8V1D-T/R-S20 come in an insert card version. The cards can be inserted into our 14-slot, 19inch 2U or 4U rack-mountable card cage(WTB-CH02 or WTB-CH04).

Single-Mode or Multi-Mode,
WTB-8V1D-T/R only can support FC/PC, ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range is according to the Optical Budget.

Features

· Support Point-to-Point or Daisy-Chain connection
· Uncompressed Digital Composite Video over one fiber
· Compatible with all PAL, NTSC, SECAM Video Systems
· Data support RS485(2-wire or 4-wire), RS232, RS422, Contact Closure
· Multi-mode Fiber Support for Distances up to 2.0 km
· Single-Mode Fiber Support for Distances up to 100 km
· LED Status Provide Rapid Indication of Operating Parameters
· No EMI or RFI and no ground loops
· Support Coarse Wavelength Division Multiplexing (CWDM)
· Stand alone or rack-mount
· Produce according to customer's specifications, providing OEM

Ordering Information

Economical Video Transceiver
Model No.	Product Description	Signals	Remarks
WTB-1V-T/R-S20	1-channel Video transceiver T/R	1V↑	Iron box, single mode, FC port, single fiber
WTB-1V1D-T/R-S20	1-ch+1 return data Video & Data fiber transmission	1V↑+1D↓	Iron box, single mode, FC port, single fiber
WTB-2V-T/R-S20	2-channel Video transceiver T/R	2V↑	Iron box, single mode, FC port, single fiber
WTB-2V1D-T/R-S20	2-ch+1 return data Video & Data fiber transmission	2V↑+1D↓	Iron box, single mode, FC port, single fiber
WTB-4V-T/R-S20	4-channel Video transceiver T/R	4V↑	Iron box, single mode, FC port, single fiber
WTB-4V1D-T/R-S20	4-ch+1 return data Video & Data fiber transmission	4V↑+1D↓	Iron box, single mode, FC port, single fiber
WTB-8V-T/R-S20	8-channel Video transceiver T/R	8V↑	Iron box, single mode, FC port, single fiber
WTB-8V1D-T/R-S20	8-ch+1 return data Video & Data fiber transmission	8V↑+1D↓	Iron box, single mode, FC port, single fiber
WTB-16V-T/R-S20	16-channel Video transceiver T/R	16V↑	Iron box, single mode, FC port, single fiber
WTB-16V1D-T/R-S20	16-ch+1 return data Video & Data fiber transmission	16V↑+1D↓	Iron box, single mode, FC port, single fiber
WTB-R1400D-2U	19 inch 2U chassis	19 inch,2U,14 slots	Iron box,dual powerAC220V,appliable to 1 channel transceiver
Professional Video Transceiver
MINI-1V-T/R-S20	1-channel MINI Video transceiver T/R	1V↑	Aluminium box,single mode FC,single fiber
MINI-1V1D-T/R-S20	1V+1D MINI fiber transmission	1V↑+1D↓	Aluminium box,single mode FC,single fiber
NF-1V-T/R-S20	1-channel Video transceiver T/R	1V↑	Aluminium box,single mode FC,single fiber
NF-1V1D-T/R-S20	1-ch+1 return data Video & Data fiber transmission	1V↑+1D↓	Aluminium box,single mode FC,single fiber
NF-2V-T/R-S20	2-channel Video transceiver T/R	2V↑	Aluminium box,single mode FC,single fiber
NF-2V1D-T/R-S20	2-ch+1 return data Video & Data fiber transmission	2V↑+1D↓	Aluminium box,single mode FC,single fiber
NF-4V-T/R-S20	4-channel Video transceiver T/R	4V↑	Aluminium box,single mode FC,single fiber
NF-4V1D-T/R-S20	4-ch+1 return data Video & Data fiber transmission	4V↑+1D↓	Aluminium box,single mode FC,single fiber
NF-8V-T/R-S20	8-channel Video transceiver T/R	8V↑	Aluminium box,single mode FC,single fiber
NF-8V1D-T/R-S20	8-ch+1 return data Video & Data fiber transmission	8V↑+1D↓	Aluminium box,single mode FC,single fiber
NF-16V-T/R-S20	16-channel Video transceiver T/R	16V↑	Aluminium box,single mode FC,single fiber
NF-16V1D-T/R-S20	16-ch+1 return data Video & Data fiber transmission	16V↑+1D↓	Aluminium box,single mode FC,single fiber
	19 inch 2U chassis	19 inch,2U,16 slots	Aluminium box, dual power (AC220V)
	19 inch 4U chassis	19 inch,4U,16 slots	Aluminium box, dual power (AC220V)
