Product Specifications
Prod Model: |
WTB-4V1D-T/R-S20 |
Markets: |
South America,Southeast Asia,Africa,Mid East |
Type: |
Fiber Transceiver |
Product Description
System Design

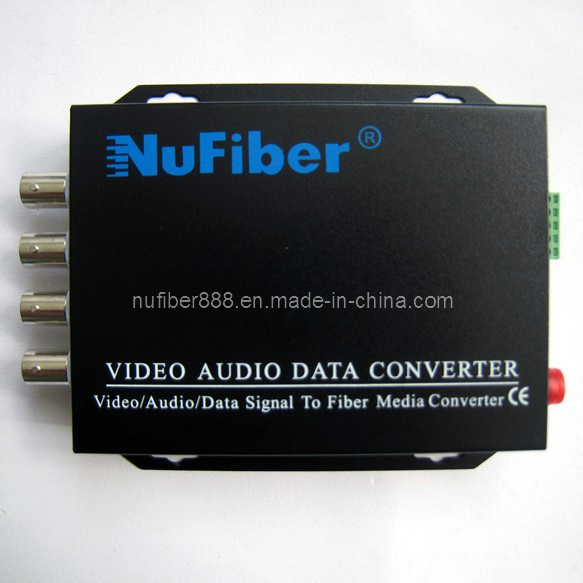

WTB-4V1D-T/R-S20 can transfer 4-Channel digital composite video and 1 reverse data. It is designed for applications in the control of PTZ cameras.
Stand-alone or rack-mount.
All units of WTB-4V1D-T/R-S20 come in an insert card version. The cards can be inserted into our 14-slot, 19inch 2U or 4U rack-mountable card cage(WTB-CH02 or WTB-CH04).
Single-Mode or Multi-Mode,
WTB-4V1D-T/R only can support FC/PC, ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range is according to the Optical Budget.
Features
· Support Point-to-Point or Daisy-Chain connection
· Uncompressed Digital Composite Video over one fiber
· Compatible with all PAL, NTSC, SECAM Video Systems
· Data support RS485(2-wire or 4-wire), RS232, RS422, Contact Closure
· Multi-mode Fiber Support for Distances up to 2.0 km
· Single-Mode Fiber Support for Distances up to 100 km
· LED Status Provide Rapid Indication of Operating Parameters
· No EMI or RFI and no ground loops
· Support Coarse Wavelength Division Multiplexing (CWDM)
· Stand alone or rack-mount
· Produce according to customer's specifications, providing OEM
Ordering Information
Economical Video Transceiver |
Model No. |
Product Description |
Signals |
Remarks |
WTB-1V-T/R-S20 |
1-channel Video transceiver T/R |
1V↑ |
Iron box, single mode, FC port, single fiber |
WTB-1V1D-T/R-S20 |
1-ch+1 return data Video & Data fiber transmission |
1V↑+1D↓ |
Iron box, single mode, FC port, single fiber |
WTB-2V-T/R-S20 |
2-channel Video transceiver T/R |
2V↑ |
Iron box, single mode, FC port, single fiber |
WTB-2V1D-T/R-S20 |
2-ch+1 return data Video & Data fiber transmission |
2V↑+1D↓ |
Iron box, single mode, FC port, single fiber |
WTB-4V-T/R-S20 |
4-channel Video transceiver T/R |
4V↑ |
Iron box, single mode, FC port, single fiber |
WTB-4V1D-T/R-S20 |
4-ch+1 return data Video & Data fiber transmission |
4V↑+1D↓ |
Iron box, single mode, FC port, single fiber |
WTB-8V-T/R-S20 |
8-channel Video transceiver T/R |
8V↑ |
Iron box, single mode, FC port, single fiber |
WTB-8V1D-T/R-S20 |
8-ch+1 return data Video & Data fiber transmission |
8V↑+1D↓ |
Iron box, single mode, FC port, single fiber |
WTB-16V-T/R-S20 |
16-channel Video transceiver T/R |
16V↑ |
Iron box, single mode, FC port, single fiber |
WTB-16V1D-T/R-S20 |
16-ch+1 return data Video & Data fiber transmission |
16V↑+1D↓ |
Iron box, single mode, FC port, single fiber |
WTB-R1400D-2U |
19 inch 2U chassis |
19 inch,2U,14 slots |
Iron box,dual powerAC220V,appliable to 1 channel transceiver |
Professional Video Transceiver |
MINI-1V-T/R-S20 |
1-channel MINI Video transceiver T/R |
1V↑ |
Aluminium box,single mode FC,single fiber |
MINI-1V1D-T/R-S20 |
1V+1D MINI fiber transmission |
1V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
NF-1V-T/R-S20 |
1-channel Video transceiver T/R |
1V↑ |
Aluminium box,single mode FC,single fiber |
NF-1V1D-T/R-S20 |
1-ch+1 return data Video & Data fiber transmission |
1V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
NF-2V-T/R-S20 |
2-channel Video transceiver T/R |
2V↑ |
Aluminium box,single mode FC,single fiber |
NF-2V1D-T/R-S20 |
2-ch+1 return data Video & Data fiber transmission |
2V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
NF-4V-T/R-S20 |
4-channel Video transceiver T/R |
4V↑ |
Aluminium box,single mode FC,single fiber |
NF-4V1D-T/R-S20 |
4-ch+1 return data Video & Data fiber transmission |
4V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
NF-8V-T/R-S20 |
8-channel Video transceiver T/R |
8V↑ |
Aluminium box,single mode FC,single fiber |
NF-8V1D-T/R-S20 |
8-ch+1 return data Video & Data fiber transmission |
8V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
NF-16V-T/R-S20 |
16-channel Video transceiver T/R |
16V↑ |
Aluminium box,single mode FC,single fiber |
NF-16V1D-T/R-S20 |
16-ch+1 return data Video & Data fiber transmission |
16V↑+1D↓ |
Aluminium box,single mode FC,single fiber |
|
19 inch 2U chassis |
19 inch,2U,16 slots |
Aluminium box, dual power (AC220V) |
|
19 inch 4U chassis |
19 inch,4U,16 slots |
Aluminium box, dual power (AC220V) |
