Product Specifications
| Prod Model: |
SBW-1600kvA~2000kA Three-phase power |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
SBW-1600kVA~2000kVA |
| Case: |
Metal Plate |
| Colour: |
Gray 7035 |
| Phase: |
Three |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Nature Of Wave String: |
Non-Lack Fidelity Waveform |
| Brand: |
Anscnlec |
Product Description
APPLICATION:

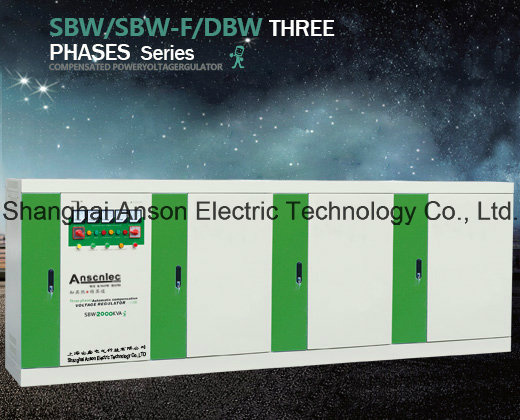

SBW/DBW-D three phases AC voltage stabilizer is a contact adjustable automatic voltage compensation high power regulating power device. When voltage from puppet network is varied o due to loading current effect, it automatically regulates the output voltage to ensure the normal function of the varied of electric equipments.
USE SITUATION
Widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securities and other occasions where all needs normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.
SPECIFICATIONS:
Input voltage: Single phases: 175V-265V
Three phases four-line175V-265V (phase voltage) 300V-465V (Line voltage)
Output voltage Single phases: 220V
Three phases: 380V
Output deviance: 1-5% (Adjustable)
Frequency: 50Hz/60Hz
Efficiency ≥95% (Power > 50kv A)
Response time ≤1.5S
Ambient temperature -1 0ºC~+40ºC
Insulation resistance ≥5MΩ
Overload Double rated current, one min
Waveform distortion Non-lack fidelity waveform
Protect Overvoltage,over current,feed phases
OUTLI NE & PACKI NG
| Model | Output power (kV A) | Outline (cm) | Weight(kg) |
| SBW-Z-50K | 50 | 80*54*135 | 350 |
| SBW-Z-60K | 60 | 80*54*135 | 370 |
| SBW-Z-100K | 100 | 85*60150 | 420 |
| SBW-Z-150K | 150 | 100*70*170 | 550 |
| SBW-Z-180K | 180 | 100*70*170 | 570 |
| SBW-Z-200K | 200 | 100*70*170 | 630 |
| SBW-Z-225K | 225 | 110*80*180 | 660 |
| SBW-Z-250K | 250 | 110*80*180 | 700 |
| SBW-Z-300K | 300 | 110*80*200 | 740 |
| SBW-Z-320K | 320 | 110*80*200 | 760 |
| SBW-Z-400K | 400 | 100*80*200/ 2Cabinet | 1100 |
| SBW-Z-500K | 500 | 100*80*200/ 2Cabinet | 1500 |
| SBW-Z-600K | 600 | 100*80*200/ 2Cabinet | 2200 |
| SBW-F-800K | 800 | 85*120*200/ 3Cabinet | 2800 |
| SBW-F-1000K | 1000 | 85*120*200/ 3Cabinet | 3500 |
| SBW-F-1200K | 1200 | 85*120*200/ 3Cabinet | 4100 |
| SBW-F-1600K | 1600 | 135*130*220/ 4Cabinet | 5560 |
| SBW-F-2000K | 1800 | 135*130*220/ 4Cabinet | 7100 |
