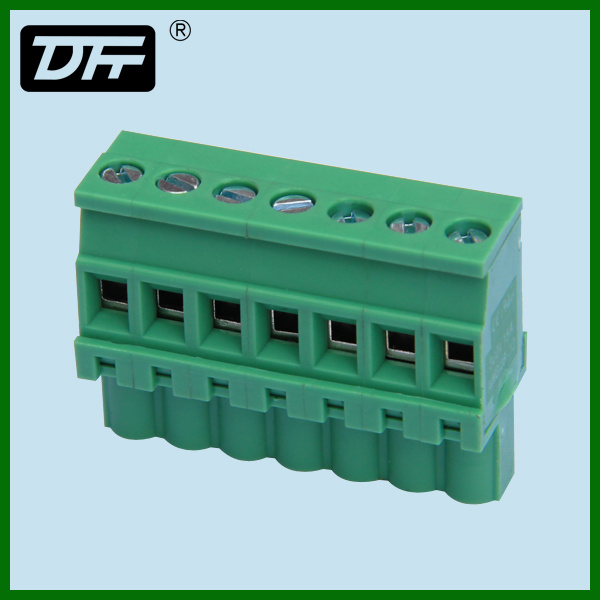

180 degree terminal block pluggable connector
Pitch: 5.0mm, 5.08mm, 7.50mm, 7.62mm
MATERIAL
Screw: M2.5 steel Zinc plated
Contact: Phosphor bronze
Housing: PA66, UL94V-0
ELECTRIAL
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ /1000V
Withstanding voltage: AC1500/Min
Wire range: 28-12AWG 2.5mm
MECHANICAL
Temp. Range: -40º C to +105º C
MAX Soldering: +250º C for 5 sec.
Torque: 0.5Nm(4.5lb. In)
Strip length: 7-8mm
Thank you very much for your pay attention to our 180 degree terminal block pluggable connector please contact with us at any time, we will give you a quick reply(within 24 hours)and try our best to support you!
|
Part number |
KF2EDGKB |
|
Pitch |
5.0, 5.08, 7.5, 7.62mm |
|
Material |
PA66, UL94V-0 |
|
Rated voltage/current |
300V/15A |
|
Contact |
Phosphor bronze |
|
Wire range |
28-12AWG 2.5mm² |
|
Strip length |
7-8mm. |
|
Temp. Range |
-40C~+105C |
|
package |
we packed in the standard cartons:28*28*42cm,or as your requirement. |
|
Payment |
100% TT before shippment |
KAIFENG ELECTRONICS was established in May 1988, major in manufacturing all kinds of electronic connectors.Its products apply in lots of apparatus in electron field.We have the innovation, mould manufacture, plastic injection, hardware process and installation departments, apply the advanced management and advanced process equipment, Meanwhile, we accept special requirements for OEM/ODM products.
After many years development, we have the better technology and full sorts.The products with high quality are sold to more than fifty countries.KAIFENG ELECTRONICS has been the most important provider of the electronic connectors in the Asia and the Pacific area.With the market, sticking in the idea of striving for perfection, we are going to bring in the many automatic technologies and equipments including CAD/CAM and Process Center.Thus, we can develop the multiple, innovative and market-leaded products.
