Product Specifications
| Prod Model: |
KF151 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
4.0mm |
| Rated Current: |
9A |
| Housing: |
PA4t,UL94V-0 |
| Strip Length: |
7mm |
| Withstanding Voltage: |
AC1500V/1min |
| Rated Voltage: |
320V |
| Max.Soldering: |
+250 Centigrade,5sec |
| Temp Range: |
-40 Centigrade~+105 Centigrade |
| Wire Range: |
24-18AWG 0.75mm² |
| Color: |
White |
| Application: |
Battery |
Product Description

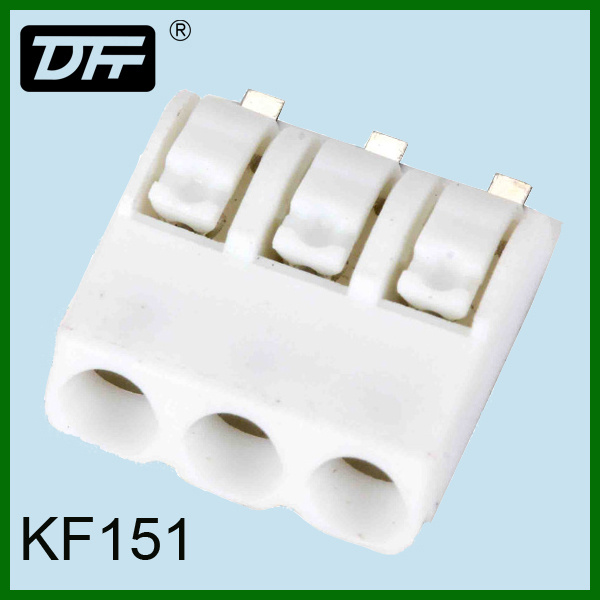

SMD Connector Wago Terminal Block
KF151 could replace wago 2060 series. Kaifeng can offer the product with the same function as wago, but the cost is lower than wago, why not try kaifeng?
Below is the information of Terminal Blocks Connector
1. Production Capacity: 500000pins/day
2. Delivery Date: According to the order quantities
3. Color: White
4. Housing: PA4T, UL94V-0
5. Rated Current: 9A
6. Insulation Resistance: 5000MΩ /1000V
7. Strip length: 7mm
8. Means of Transport: Ocean, Land, Air
9. Packing: Tape and reel
10. Pitch: 4.00mm
11. Pin header: Brass, Tin plated
12. Rated Voltage: 320V
13. Wire Range: 24-18AWG 0.75mm²
14. Withstanding Voltage: AC1500V/1Min
15. Temp range: --40 centigrade~+105 centigrade
16. Max. Soldering: +250 centigrade, 5sec
17. Strip Length: 7mm
18. Contact Resistance: 20mΩ
Thank you very much for your pay attention to our SMD Connector Wago Terminal Block, please feel free to contact us, we are of service at any time. More information would be sent on your request.
|
Model No. |
KF151 |
|
Product Name |
SMD Terminal block |
|
Production Capacity |
500000pins/day |
|
Pitch |
4.00mm |
|
Rated Voltage |
320V |
|
Wire Range |
24-18AWG 0.75mm² |
|
Withstanding Voltage |
AC1500V/1Min |
|
Temp range |
-40 centigrade~+105 centigrade |
|
Max.soldering |
+250 centigrade5sec |
|
Strip Length |
7mm |
|
Contact Resistance |
20mΩ |
|
Rated Corrent |
9A |
|
Insulation Resistance |
5000MΩ/1000V |
|
Color |
white |
|
Means of Transport |
Ocean,Land,Air |
|
Packing |
tape and reel |
|
Pin header |
Brass,Tin plated |
|
Delivery Date |
according to the order quantities |
