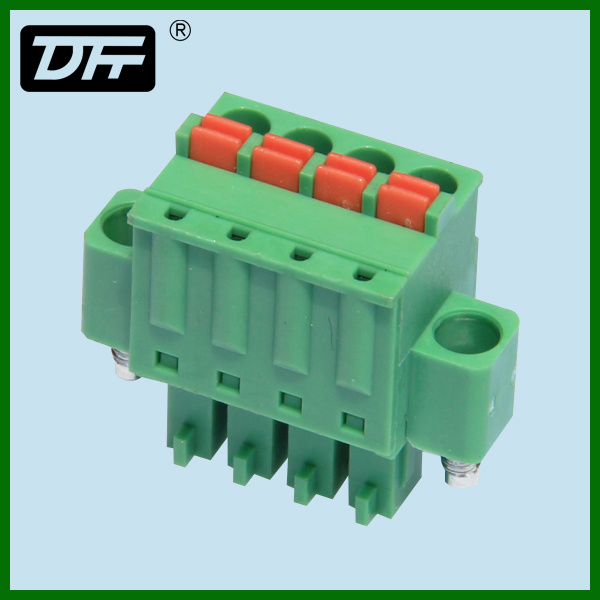

Spring clamp terminal block pluggable connector
Pitch: 3.50mm 3.81mm 5.0mm 5.08mm
Material
Contact: Stainless Steel
Housing: PA66, UL94-0
Eletronical
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20m
Insulation resistance: 5000M/1000V
Withstanding Voltage: AC2000V/1Min
Wire range: 24-12AWG 2.5mm
Mechanical
Temp. Range: -40-+105
MAX Soldering: +250 for 5 Sec
Strip length: 10-11mm
Thank you very much for your pay attention to our spring clamp terminal block pluggable connector please contact with us at any time, we will give you a quick reply(within 24 hours)and try our best to support you!
