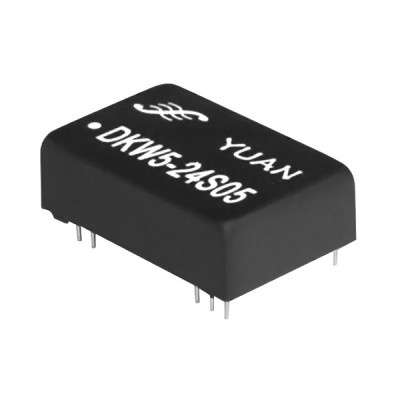

2: 1 Wide Range Input 1kv Isolated DC DC Converter
Product Specifications
| Prod Model: |
DKW 5 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
2:1 Wide Input Range |
| Output Features: |
with Over-Current and Short-Circuit Protection |
Product Description
2:1 Wide Range Input DC-DC Converter
Features:
--5W regulated output power
--2: 1 wide input voltage range
--Regulated output voltage
--No heat sink required
--Small foot print
--PCB mounting
--High accuracy regulated output
--Shot circuit protection
--International standard DIP24 package
The DKW series DC-DC converter offers regulated power from a 24 PIN international standard DIP package. The series are especially Designed for the application of telecommunication, industry control, Instrumentation and measurements. With its features, the product Can be used where the wider input, regulated output and isolation needed.
ELECTRICAL SPECIFICATIONS:
(All specifications tested typically @ 25° C, humidity<75%, nominal input and rated output unless otherwise noted. )
| OUTPUT SPECIFICATIONS |
| Items: | Testing condition | Min | Typ | Max |
| Output accuracy: | At full load and nominal Vin |
|
| ± 2% |
| Output power: |
|
|
| 6W |
| Line regulation: | Input voltage from low to full load |
|
| 0.5% |
| Load regulation: | From 10% to full load | Single Vout |
|
| 0.5% |
| Dual Vout |
|
| 2% |
| Ripple and noise: |
| 100mVp-p |
|
|
| Temperature drift: |
|
|
| 0.03%/° C |
| Switching frequency |
|
| 400K HZ |
|
| Over load protection | % of FL at nominal input |
| 160 |
|
| Short circuit protection |
| Continuous and automatic recovery |
|
| INPUT SPECIFICATIONS |
| Items: | Testing condition | Min | Typ | Max |
Input voltage range | 12VDC nominal input | 9-18VDC |
| 24VDC nominal input | 18-36VDC |
| 48VDC nominal input | 36-72VDC |
| Start-up time | Nominal Vin and certain load |
| 100mS |
|
|
|
|
|
|
|
|
|
|
|
|
|
| COMMON SPECIFICATIONS |
| Items |
| Min | Typ. | Max |
| Operating temperature range |
| -40° C |
| +65° C |
| Storage temperature range |
| -55° C |
| +105° C |
| Humidity |
|
|
| < 95% |
| Cooling | Free Air Convection |
| Isolation voltage (VDC) | Input to Output |
| 1, 000 |
|
| Isolation resistance (ohms) |
|
| 10 9 |
|
| Isolation capacitance (pF) |
|
|
| 30 |
| Efficiency (%) | See Product List | 70 |
| 80 |
| Case material | Non-conductive black copper |
| Potting material | Epoxy Resin UL94-V0 |
| Packing material | Tube |
| Dimension (mm / inch) | 31.8*20.3*10.2 (1.25*0.80*0.40) |
| Weight (g) | 14 |
| MTBF (Hrs) |
| 10 6 |
|
|
| PRODUCT LIST |
| Part Number | Input Voltage (VDC) | Output | Efficiency
(%, Typ. ) | Package | Capacitor
Load Max (uF) |
| Range | Nominal | Max. | Current (mA) | Voltage (VDC) |
| DKW5-12S05 | 9-18 | 12 | 20 | 1000 | 5 | 75 | DIP | 1200 |
| DKW5-12S12 | 12 | 20 | 417 | 12 | 81 | DIP | 220 |
| DKW5-12S15 | 12 | 20 | 333 | 15 | 83 | DIP | 150 |
| DKW5-12D05 | 12 | 20 | ± 500 | ± 5 | 75 | DIP | ± 680 |
| DKW5-12D12 | 12 | 20 | ± 208 | ± 12 | 80 | DIP | ± 100 |
| DKW6-12D15 | 12 | 20 | ± 200 | ± 15 | 83 | DIP | ± 68 |
| DKW5-24S05 | 18-36 | 24 | 40 | 1000 | 5 | 78 | DIP | 1200 |
| DKW6-24S12 | 24 | 40 | 500 | 12 | 81 | DIP | 220 |
| DKW5-24S15 | 24 | 40 | 333 | 15 | 80 | DIP | 150 |
| DKW5-24D05 | 24 | 40 | ± 500 | ± 5 | 75 | DIP | ± 680 |
| DKW5-24D12 | 24 | 40 | ± 208 | ± 12 | 80 | DIP | ± 100 |
| DKW5-24D15 | 24 | 40 | ± 167 | ± 15 | 80 | DIP | ± 68 |
| DKW5-48S05 | 36-72 | 48 | 80 | 1000 | 5 | 75 | DIP | 1200 |
| DKW5-48S12 | 48 | 80 | 417 | 12 | 81 | DIP | 220 |
| DKW5-48S15 | 48 | 80 | 333 | 15 | 83 | DIP | 150 |
| DKW5-48D05 | 48 | 80 | ± 500 | ± 5 | 75 | DIP | ± 680 |
| DKW5-48D12 | 48 | 80 | ± 208 | ± 12 | 80 | DIP | ± 100 |
| DKW6-48D15 | 48 | 80 | ± 200 | ± 15 | 80 | DIP | ± 68 |
