Product Specifications
| Prod Model: |
2000C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness Value: |
±0.1mm |
| Storage Capacity: |
600 Measurement Points |
| Dimension: |
124*51*27mm |
Product Description

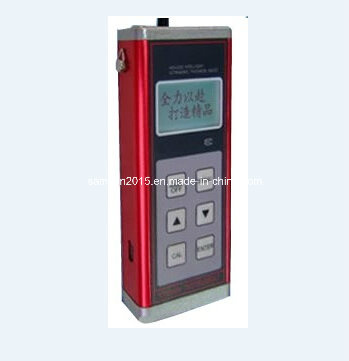

With its internal circuitry designed by the latest digital electronic and microcomputer technologies and its exterior made of metal casing, -2000C ultrasonic thickness gauge, characterized by its small size, low power consumption, strong functions, anti-tempering and anti-vibration, is your first choice in the practical application. It can be used to measure the thickness of boilers, pressure vessels, pipes, metal workpieces, glass, plastics and organic glass in a convenient and non-destructive way.
.
Specifications
1. Measuring Range: 0.7-199.9mm (45#Steel)
2. Precision: 0.1mm
3. Error: 1%×Thickness Value ±0.1mm
4. Measuring Method: Manual Memory Measurement
5. Storage Capacity:600 Measurement Points
6. Probe Frequency: 5MHz
7. Sound Velocity Range: 1000--9990M/S
8. Power Supply: 1.2--1.5V Alkaline or Rechargeable Batteries
9. Dimension: 124*51*27m3
10. Coupling Instructions: When the measured object is well coupled with the probe, it appeares as the right figure on the leftmost side of the LCD:
11. Operating Environment: Temperature Between -10°C ~ 60°C , Relative Humidity < 90%
12. APO: Automatic Power Off after 5 Minutes of Standby
