200ton Hydraulic Sheet Bending Machine with 3m Table

Name: 200ton Hydraulic Sheet Bending Machine with 3m Table
Brand: china-manufacturer-directory.com
SKU: 736713975
Availability: InStock
Rating: 4.4 (112 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 20000-30000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WC67Y-200x3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bending Machine:	Hydraulic Press Brake
Capacity:	200ton
Table Length:	3200mm
Hydraulic System:	Chinese Brand
Punch And Die:	Standard Equipped
Application:	Machinery & Hardware
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Type For Cutting Machine:	Press Brake

Product Description

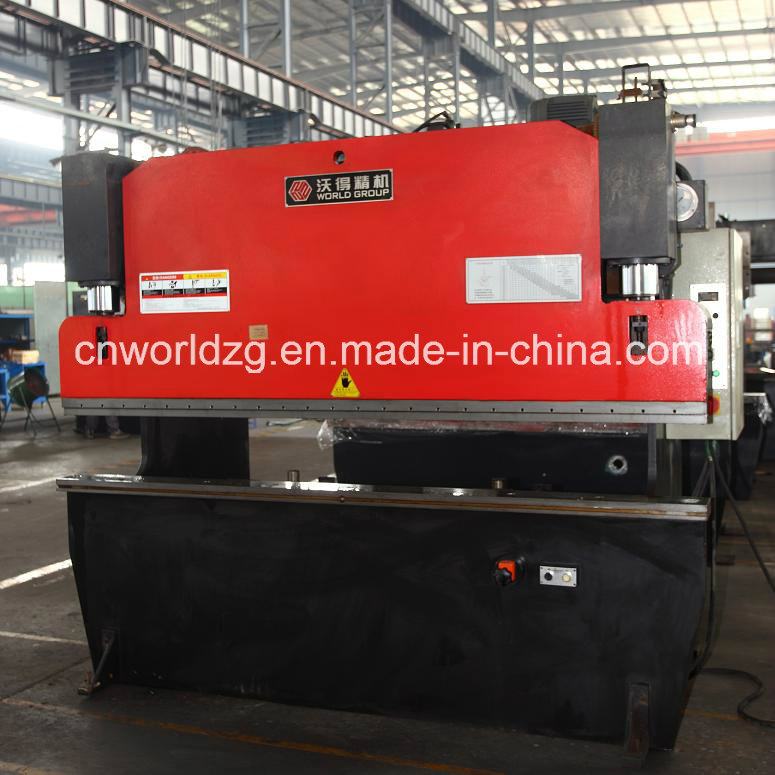

WC67Y-200x3200 hydraulic sheet bending machine

Features:

1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.
6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.

parameters:

Items	unit	63/2500	63/3200	100/2500	100/3200	100/4000	125/2500	125/3200	125/4000
Nominal pressure	kN	630	630	1000	1000	1000	1250	1250	1250
Length of table	mm	2500	3200	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	2050	2600	2050	2600	3300	2050	2600	3200
Throat depth	mm	250	250	320	320	320	320	320	320
Ram stroke	mm	100	100	150	150	150	150	150	150
Max. open height between ram and table	mm	345	345	415	415	415	415	415	415
Adjustment of Ram stroke	mm	75	75	120	120	120	120	120	120
Approach speed	mm/s	90	90	120	120	120	110	110	110
Bend speed	mm/s	8	8	13	13	13	10	10	10
Return speed	mm/s	66	66	115	115	115	100	100	100
Main motor	kW	5.5	5.5	7.5	7.5	7.5	11	11	11
Overall dimension ( LxWxH )	mm	2560	3260	2650	3350	4150	2650	3350	4150
		1725	1725	1785	1785	1785	1785	1785	1785
		2280	2280	2460	2510	2560	2540	2560	2610
Weight	kg	4400	5200	6100	7000	79000	6600	7300	8800
Items	unit	160/2500	160/3200	160/4000	200/3200	200/4000	250/3200	250/4000	300/3200
Nominal pressure	kN	1600	1600	1600	2000	2000	2500	2500	3000
Length of table	mm	2500	3200	4000	3200	4000	3200	4000	3200
Distance between uprights	mm	2050	2600	3400	2600	3700	2600	3200	2600
Throat depth	mm	320	320	320	320	320	400	400	400
Ram stroke	mm	200	200	200	200	200	250	250	250
Max. open height between ram and table	mm	470	470	470	520	520	560	560	560
Adjustment of Ram stroke	mm	160	160	160	160	160	200	200	200
Approach speed	mm/s	100	100	100	90	90	100	100	90
Bend speed	mm/s	9.5	9.5	9.5	8.5	8.5	9.5	9.5	9
Return speed	mm/s	95	95	95	85	85	110	110	120
Main motor	kW	11	11	11	15	15	18.5	18.5	22
Overall dimension ( LxWxH )	mm	2560	3260	4060	3500	4150	3350	4150	3300
		1940	1940	1940	1940	1940	2000	2000	2100
		2660	2660	2660	2660	2900	2900	2970	3100
Weight	kg	9000	9600	11800	12000	14800	14000	16000	18500
Items	unit	300/4000	400/3200	400/4000	400/5000	500/4000	500/5000
Nominal pressure	kN	3000	4000	4000	4000	5000	5000
Length of table	mm	4000	3200	4000	5000	4000	5000
Distance between uprights	mm	3200	2600	3200	4000	3200	4000
Throat depth	mm	400	400	400	400	400	400
Ram stroke	mm	250	300	300	300	300	300
Max. open height between ram and table	mm	560	630	630	630	630	630
Adjustment of Ram stroke	mm	200	250	250	250	250	250
Approach speed	mm/s	90	90	90	90	80	80
Bend speed	mm/s	9	8	8	8	7	7
Return speed	mm/s	120	85	85	85	70	70
Main motor	kW	22	30	30	30	37	37
Overall dimension ( LxWxH )	mm	4150	3300	4150	5150	4150	5150
		2100	2260	2260	2260	2400	2400
		3150	3200	3400	3600	3600	3800
Weight	kg	22000	23000	29000	35000	40000	57000

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
