Product Specifications
| Prod Model: |
ZDH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Factory Direct Sales |
| Capacity: |
0.5~40 T/H |
| Warranty: |
One Year |
| Field Services: |
Provided |
| Instruction: |
Under Our Engineer's Guidance |
| Service: |
for The Whole Using Life |
| Design: |
Offered by Us |
| After-Sale Services: |
Available |
| Working Condition: |
Excellent |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Convective |
Product Description

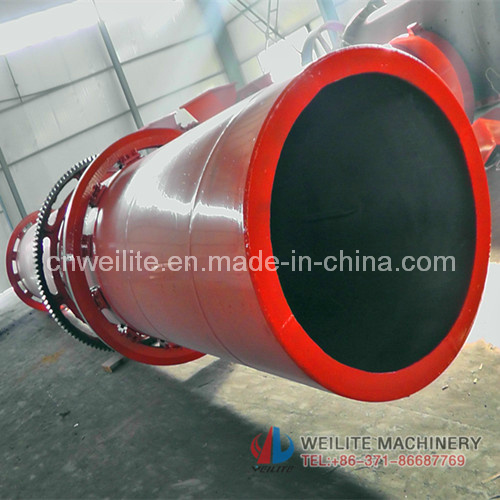

2013 China Mining Dryer fluorite Powder Drying Machine(ZDH)
Application of rotary drying machine:
Rotary drying machine is widely used in building materials, metallurgy, chemical industry and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and clay.
Rotary dryer can be widely used in:
1. The coal industry: Coal slime, coal, flotation clean coal, mixed clean coal etc.
2. The construction industry: Blast furnace slag, clay, Peng Yun soil, lime stone, sand, quartz stone etc.
3. Ore processing industry: Various metal concentrates, slag, tailings etc.
4. Chemical industry: Non-drying heat sensitive materials.
Description of fluorite powder drying machine:
1. Makes the pellets through extrusion and polished new technology, completely solve the traditional pelletizing process which the organic powder low increased quantity, difficulty extrusion and the materials need to be dried and crushed and other technique problems.
2. Fluorite powder drying machine can produce the roundshape pure organic fluorite, compound fluorite and biomass Fluorite and biomass fluorite.
3. The pellets are very even, smooth and fine liquidity.
4. Pellet mill adopts the unique triad to come true the whole process of drying cooling and screening.
5. Survival ratio of microbial bacterium: >90%.
6. Has the low investment and running expense.
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
If you didn't get the suitable machine in this page, please email me you detailed requirement. We are the manufacturer with over 30 years working experience. We can help you in this matter.
|
Model (mm) |
Gradient (%) |
Rotational ( r/min ) |
Inlet air temperature ( ºC) |
Power (kw) |
Production capacity (t/h) |
|
φ 600 × 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
|
φ 800 × 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
|
φ 800 × 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
|
φ 1000 × 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
|
φ 1200 × 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
|
φ 1200 × 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
|
φ 1500 × 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
|
φ 1800 × 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
|
φ 2200 × 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
|
φ 2200 × 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
|
φ 2200 × 20000 |
3-5 |
1.5-6 |
≤ 800 |
30 |
12-20 |
|
φ 2400 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
37 |
18-30 |
|
φ 3000 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
55 |
25-35 |
|
φ 3000 × 25000 |
3-5 |
1.5-5 |
≤ 800 |
75 |
32-40 |
