Product Specifications
| Prod Model: |
ZDH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Factory Direct Sales |
| After-Sale Services: |
Available |
| Capacity: |
0.5~40 T/H |
| Warranty: |
One Year |
| Field Services: |
Provided |
| Working Condition: |
Excellent |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Convective |
Product Description

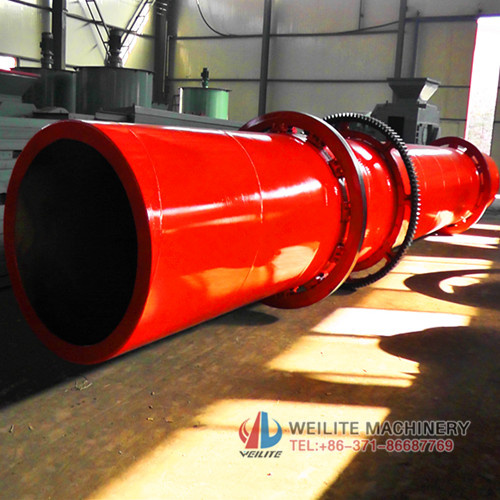

High Quality Rock Phosphate Rotary Dryer (ZDH)
Application of the rock phosphate rotary dryer:
Rock phosphate rotary dryer is widely used in the field of building materials, chemical industry, cement and so on. It can dry Rock Phosphate, slag, coal powder, mining powder, clay, sand, limestone and so on.
Rock phosphate rotary dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
Rock phosphate rotary dryer can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.
Rotary dryer structure:
Rock phosphate rotary dryer is mainly consist of rotary body, feeding port, scatter plate device, driving devices, supporting device and sealing ring, discharge hole. The driving device including gear and motor, supporting device including rolling ring, rali bearing,
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
If you didn't get the suitable machine in this page, please email me you detailed requirement. We are the manufacturer with over 30 years working experience. We can help you in this matter.
|
Model (mm) |
Gradient (%) |
Rotational ( r/min ) |
Inlet air temperature ( ºC) |
Power (kw) |
Production capacity (t/h) |
|
φ 600 × 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
|
φ 800 × 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
|
φ 800 × 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
|
φ 1000 × 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
|
φ 1200 × 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
|
φ 1200 × 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
|
φ 1500 × 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
|
φ 1800 × 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
|
φ 2200 × 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
|
φ 2200 × 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
|
φ 2200 × 20000 |
3-5 |
1.5-6 |
≤ 800 |
30 |
12-20 |
|
φ 2400 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
37 |
18-30 |
|
φ 3000 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
55 |
25-35 |
|
φ 3000 × 25000 |
3-5 |
1.5-5 |
≤ 800 |
75 |
32-40 |
