Product Specifications
| Prod Model: |
ZDH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Price: |
Factory Direct Sales |
| After-Sale Services: |
Available |
| Capacity: |
0.5~40 T/H |
| Warranty: |
One Year |
| Field Services: |
Provided |
| Working Condition: |
Excellent |
| Service: |
for The Whole Using Life |
| Instruction: |
Under Our Engineer's Guidance |
| Design: |
Offered by Us |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Convective |
Product Description

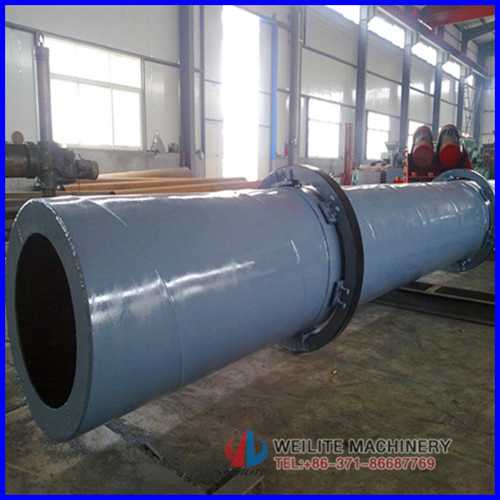

Professional Coal Slime Rotary Dryer/Coal Slime Drying Equipment With Best Price
Description of the coal slime drying equipment price:
The coal slime drying equipment is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation. This series drier is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. The Coal Slime Drying Equipment can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.
Working principal of coal slime drying equipment:
1. The drying equipment is composed of rotary cylinder, lifting blade, driving device, supporting device,
Sealing ring.
2. Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow.
3. The cylinder is equipped with flights, which lift the material and shower it down through the hot gas stream.
Features of drying equipment:
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
4. Temperature induction monitor, uniform vibration and airproof setting, which improve performance and productivity efficiently
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area, easy regulation and equipped with greenhouse.
Our service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
If you didn't get the suitable machine in this page, please email me you detailed requirement. We are the manufacturer with over 30 years working experience. We can help you in this matter.
|
Model (mm) |
Gradient (%) |
Rotational ( r/min ) |
Inlet air temperature ( ºC) |
Power (kw) |
Production capacity (t/h) |
|
φ 600 × 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
|
φ 800 × 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
|
φ 800 × 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
|
φ 1000 × 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
|
φ 1200 × 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
|
φ 1200 × 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
|
φ 1500 × 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
|
φ 1800 × 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
|
φ 2200 × 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
|
φ 2200 × 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
|
φ 2200 × 20000 |
3-5 |
1.5-6 |
≤ 800 |
30 |
12-20 |
|
φ 2400 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
37 |
18-30 |
|
φ 3000 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
55 |
25-35 |
|
φ 3000 × 25000 |
3-5 |
1.5-5 |
≤ 800 |
75 |
32-40 |
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials, cold pressure ball machines, Vibrating Feeders and Briquette & Ore Powder Ball Press Machines, etc.
The technological performance of our grinding mills and crushers are on the lead level. We have achieved the internationally advanced level. In recent years, we have optimized design and adopted advanced technology. We have been equipped with the following equipment:
Grinder mills: Raymond mills, high-pressure suspension grinders, high-pressure micro powder mills, etc.
Crushers: Jaw crushers, impact crushers, Vertical composite crushers and Counter-attack highly effective fine crushers (sand making machines)
Meanwhile, we also offer vibrating feeders, vibrating screens, transporters, flotation machines, magnetic separators and sand washing machines.
Our company is located at Zhujiang Road, Xushui Industrial Park, Zhengzhou City, covering an area of 50, 000 square meters. Our company has more than 100 heavy-duty processing equipment and mining equipment. Our fixed assets are more than 5000 million yuan. Our company consists of two branches and two institutes.
Since the inception, with advanced modern enterprise management systems, precise production and independent innovation, we bring together a group of scientific and technological elites. Our company currently employs more than 500 people, including more than 20 engineers, 150 middle level technicians. We have introduced the advanced technology.
Product quality is an enterprise's life. We have passed ISO9001: 2000 international quality system management certification. Our company has an experienced and skilled after-sales service team.
You are warmly welcome to contact us for more information.
