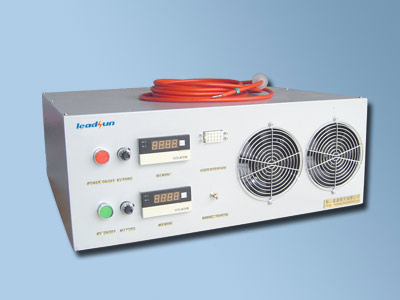

high voltage power supply
LP-10KV100mA
Leadsun HV power supplies can be widely used in the fields of electrostatic precipitator, electrostatic flocking, electrostatic powder coating, electrostatic separation, laser cutting and welding, laser ranging, laser testing, air purifying, X-ray generator, X-ray diffraction, Nondestructive testing, high voltage capacitor charging, HV testing, voltage withstanding testing. Custom service is available.Range of power supply
Working voltage 1000V-200KV
Working current 1uA-2A
Range of frequency 10KHz-200KHz
Range of power 50W-20KW
Features
1. Low ripple, high accuracy, constant voltage and constant current control
2. Modular design and unit PC board control, easy for checking.
3. High stability and reliability of long time constant working.
4. Dry type high voltage power supply, the power can reach 10KW in a single unit.
5. Industrial standard of designing, the rated value is for constant working not peak to peak, big range for operation
6. Can be worked in the conditions of short circuit and sparks.
7. Over current, over voltage, less voltage protection
8. High accuracy of 4 digits shown constantly
9. The resolution is 0.01KV to 0.01mA
|
Items |
Parameters |
Remarks |
|
Input voltage |
220V AC |
Wave less than 10% |
|
Rated power |
1.0 KW |
Full load,output Umax, Imax |
|
Rated output voltage |
10kV |
|
|
Rated output current |
100mA |
|
|
Relative voltage control accuracy |
3% |
Uo=80%*Umax |
|
Absolute voltage control accuracy |
5% |
Uo=80%*Umax |
|
Voltage/temperature coefficient |
100V/1K |
|
|
Voltage program accuracy |
Better than 5% |
|
|
Voltage output range |
5~10KV adjustable |
|
|
Output limiting current |
100mA |
|
|
Control response time |
Better than 50mS |
|
|
Ambient temperature |
-20 ~50 C |
|
|
Ambient humidity |
10%-90% no atomization |
|
|
Cooling |
Air cooling |
|
|
Starting |
Soft start |
|
|
Constant voltage control mode |
Phase shift PWM |
|
|
Current control mode |
Constant current of average value
Peak value testing |
Within 100nS overloading, cut off and restart automatically |
|
Working frequency |
50kHz |
|
|
Converting efficiency |
Better than 85% |
Output voltage from 50%_75%,efficiency 80%_90% |
|
Voltage regulation rate |
5% |
|
|
Dimension |
600*200*370 mm |
L*B*H |
|
Current voltage program mode |
By potentiometer |
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
