Quanzhou Truest Communication Co., Ltd. >> 25W Water-Proof VHF Marine Radio Tc-507m with GPS Functions

25W Water-Proof VHF Marine Radio Tc-507m with GPS Functions

Name: 25W Water-Proof VHF Marine Radio Tc-507m with GPS Functions
Brand: china-manufacturer-directory.com
SKU: 743872305
Availability: InStock
Rating: 4.4 (129 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	US $ 128/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TC-507M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Hys
Model Number:	Tc-507m
Frequency Range:	Tx:156.025-157.425MHz Rx:156.050-163.275MHz
Storage Channel:	88channels
Type Of Emission:	FM(16k0g3e),DSC(16k0g2b)
Water Proof:	Support
10 Weather Channels:	Support
Weather Alert:	Support
Channel Selectable:	Support
Large LED Display:	Easy to See ,Easy to Operate
Standard:	Standard
Condition:	New
Screen:	With Screen
Application:	Industrial
Wavelength And Frequency:	Long-wave

Product Description

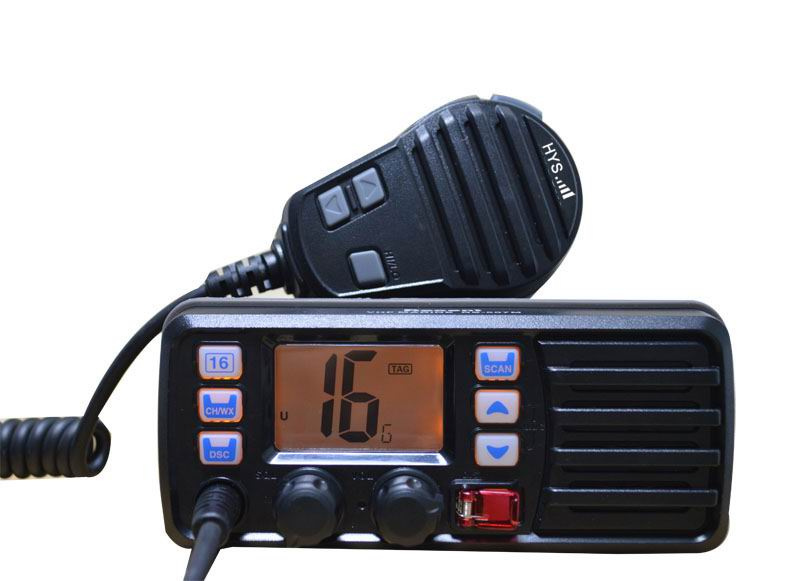

25W Water-proof vhf marine radio TC-507M with GPS Functions
Receiver TC-507M

Product Description

Main Functions:

1. Dual Bands Frequency Watch For or Three Bands Frequency Watch For

2.Buil-in DSC

3.Favorite Channel Selectable

4.Aqua Quake Draining

5. 10 Weather Channels And Weather Alert

6.Large LED Display (Easy to see ,Easy to operate )

7.1 Meter Depth For 30 Minutes Water-proof , IP-X7 Water proof Class

8.External GPS Receiver

9. Scan Resume Timer

General
Frequency Range	TX:156.025-157.425MHz
Frequency Range	RX:156.050-163.275MHz
Channel No.	88 channels
Type of Emission	FM(16K0G3E),DSC(16K0G2B)
Frequency Stability	±2.5ppm
Work Voltage (V)	DC13.8V(±15%)
Operating Temperature	-20°C~+60°C
Antenna Impedance	50Ω
Dimensions(W×H×D)	153×67×152mm
Weight	742g
Transmitter
RF Power Output	High 25W/ Low 1W
Maximum Frequency Deviation	±5KHz
Spurious and Harmonic	≤ -70dB(H)
Spurious and Harmonic	≤ -56dB(L)
Adjacent Channel Selectivity	≥70dB
TX Audio Distortion	≤10%
Current Consumption	≤ 5.5A(High power)
Current Consumption	≤ 1.5A(Low power)
Input Impedance	2KΩ(Microphone)
Receiver
RX Sensitivity	≤0.2µV
Squelch Sensitivity	±5KHz
Adjacent Channel Selectivity	≥70dB
Intermodulation Anti-interference	≥70dB
Spurious Response Rejection	≥70dB
Max RX Current(mA)	≤1.5A
Rated Audio Output Power	≥4.5W(10%)
GPS Signal Format	NMEA0183-2.0
Output Impedance	4Ω (Speaker)

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
