Product Specifications
| Prod Model: |
KF128R-5.0mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
5.0mm 7.50mm |
| Application: |
Battery |
Product Description
26-14AWG Clamp Terminal Block connectors
Pitch: 5.0mm, 7.5mm
MATERIAL
Screws: M2.5 steel Zinc plated
Contact: Brass
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
ELECTRICAL
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ /1000V
Withstanding voltage: AC1500V/Min
Wire range: 24-12AWG 2.5mm²
MECHANICAL
Temp. Range: -40º C to +105º C
MAX Soldering: +250º C for 5 sec.
Torque: 0.4Nm(3.6lb. In)
Strip length: 6-7mm

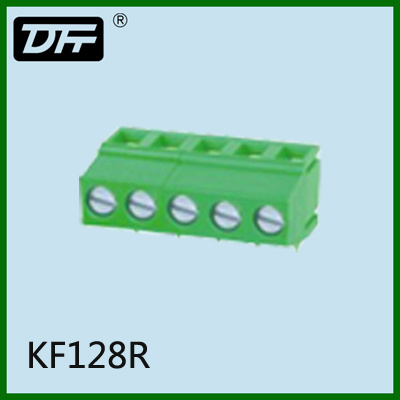

Picture of？26-14AWG Clamp Terminal Block Connectors
Packing of？26-14AWG Clamp Terminal Block Connectors
Application of？26-14AWG Clamp Terminal Block Connectors
