Quanzhou Truest Communication Co., Ltd. >> 2PCS $34.5\PC Cheap UHF Radio Two-Way Radio Tc-A1

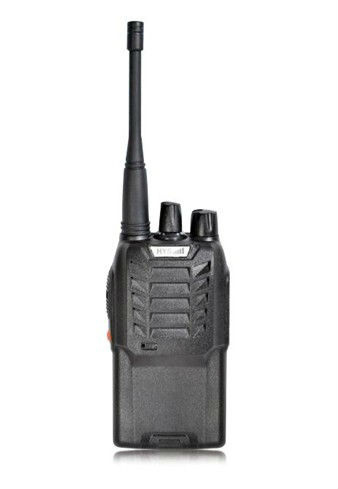

2PCS $34.5\PC Cheap UHF Radio Two-Way Radio Tc-A1

$2PCS $34.5\PC Cheap UHF Radio Two-Way Radio Tc-A1$

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	CFR,CIF,EXW

Product Specifications

Prod Model:	TC-A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Hys
Maximum Range:	>10km
Is Display:	No
Walkie Talkie Type:	Poratable
Model Number:	Tc-A1
Dimensions:	1155533mm(Except Antenna)
Frequency Range:	UHF:400-470MHz
Storage Channel:	16channels
Battery Capacity:	1200mAh(Li-ion Battery)
Warranty:	One Year
Talk Range:	15-20km
Style:	Handheld
Type:	Handheld
Usage:	Army
Battery Type:	Lithium Battery
Display:	Without Display
Working Frequency Range:	VHF or UHF Segment

Product Description

400-470mhz Military Standards Ham/amateur Two- Way Radio TC-A1

Main Functions:
1. Voice guide
2. High battery capacity
3. TOT
4. Monitor
5. Battery save
6. Low battery warning
7. PC programming
8. Strong signal

General Specification
Frequency Range	VHF:136-174MHZ UHF:400-470MHZ	Frequency combination	Phase lock loop frequency synthesize
Memory Channels	16 Channels	Operating Voltage	DC7.4V
Channel Spacing	12.5/25KHz (narrow/wide)	Battery Capacity	1200MAH(Li-ion battery)
Frequency Stability	±2.5PPM	CTCSS/DSC	CTCSS:50 DCS:105
Antenna Impedance	50Ω	Operating Temperature	-20 to +60
Weight(approx.)	123g(Except battery and antenna)	Dimension(approx.)	1155533mm(Except Antenna)
Transmitter Testing under TIA/EIA-603 standard
Output Power	≤3W	Modulation Mode	16KF3E
MAX. Frequency Deviation	≤±5.0KHz	Frequency Stability	±5ppm
Spurious Radiation	≤60dB	Residual Modulation	≤-35dB
Modulation Distortion	≤5%(300-3000Hz)	FM Noise	≤-40dB
Audio Distortion	≤5%	CTCSS Frequency Deviation	0.75KHz±50Hz
Receiver Testing under TIA/EIA-603 standard
Sensitivity	≤0.20uV	Operating Bandwidth	≥±7KHz
Squelch Sensitivity	≤0.15uV	Frequency Stability	±5ppm
Adjacent channel selectivity	≥60dB	Spurious Rejection	≥60dB
Intermodulation Rejection	≥60dB	FM Noise	≤-45dB
Audio Power	≥600mW	Audio Distortion	5%
Meet U.S.A Military Standards MIL-STD-810C/D/E

*If you want to know more information about us,welcome to contact us in any time*

Shipment:

1. We will arrange the shipment within 24 hours after receive your payment.

2. And if you make the payment on Saturday or Sunday, We'll ship it on the following Monday (weekend is not business day, Hope your understanding)

3. We usually arrange the shipment by express like DHL, EMS,UPS ,FEDEX TNT and so on that depends on different countries.

4. DHL and Fedex is our first choice because they are faster than others. If you need special shipping ways, please kindly let us know.

5. Our shipping price is not including any taxes,VAT or other changes. We will declare it with lower price in the invoice to reduce import tax for you.

6. If you have any requirments, feel free to contact with me.

Return:

1. We offer a 14-day exchange and refund policy for defective items.

2. If there is defective item received, Please show me the evidence by picture or video,buyer return the defective itemat his own costand we will ship the replace item to you at my shipping cost.

3. If you are not satisfied with our product, you can return the product. After we get the item, we will give you a refund ,However the customer should bear the shipping costs to and fro.

4. Please contact us before your return the item, we will offer you the right return address.

Feedback:

1. Our goal is to make sure you are a happy customer and pleasant shopping with us.

2. If you are satisfied with the purchase and our total service, your comment is very important in our business success.Please take a minute to leave us a positive feedback. If you are not satisfied with your purchase in anyway, Please give us the opportunity to resolve any problem, We understand the concerns and frustrations you might have, and will try our best to resolve the issues.

Warranty:

1. One Year Warranty for this product. However, don't disassemble the prdoduct by yourself. Otherwise we can not supply the warranty.If have any problems, pls contact us first.

2. Shipping cost for warranty repair/replace have to pay by buyer.

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
