Product Specifications
| Prod Model: |
KA170F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
Diesel Engine |
Product Description
Wuxi Kaiao Power Machinery Co., Ltd. specialized in
The development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F,
KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and
Gardenging machinery, etc.
1. ISO improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Easy maintenance.
| KA200 |

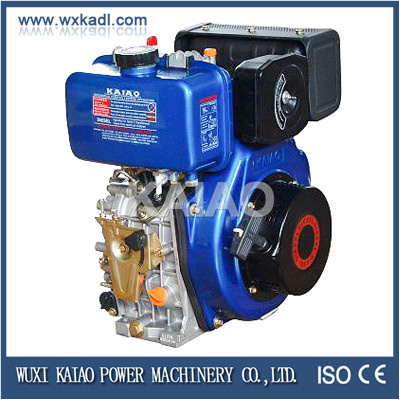

| Model | KA170F |
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
| Combustion system | Direct lnjection |
| Bore X Stroke(mm) | 70x55 |
| Displacement(cc) | 211 |
| Speed(rpm) | 3000 | 3600 |
| Max. output(hp) | 3.4 | 3.8 |
| Rated output(kw) | 2.5 | 2.8 |
| Max. no-load speed(r/min) | 108% |
| Min. no-load speed(r/min) | 1300 |
| Fule | 0# or -10#light diesel oil |
| Fule oil tank volume(L) | 2.5 |
| Lubricatiom oil volume(L) | 0.75 |
| Fule oil consumption rate(g/kw. h) | 280.2 | 288.3 |
| Valve clearance (mm) | 0.10--0.15 |
| PTO Model | Crankshaft orCamshaft |
| Starting system | recoil |
| PTO rotation direction | It is clockwise as viewing from the flywheel end |
| Battery Capacity(V, AH) | 12V-36AH |
| Dimension(mm) | 450x390x480 |
| Net weight(kg) | 28 |
| 20FT | 300 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
