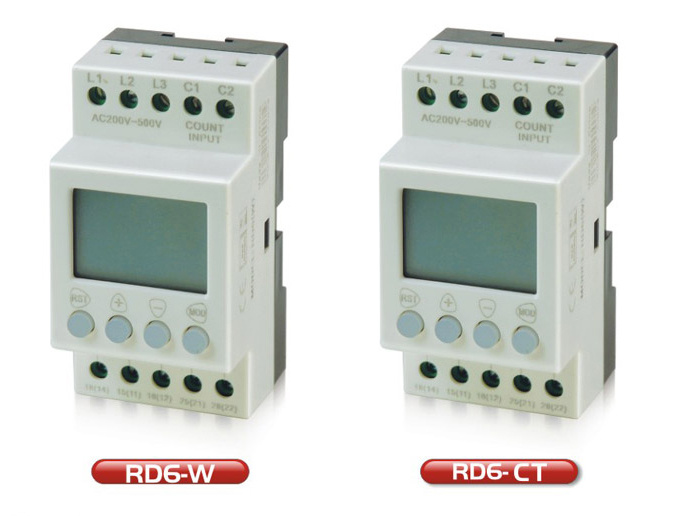

3 Phases Relay Phase Failure (RD6-W)

Name: 3 Phases Relay Phase Failure (RD6-W)
Brand: china-manufacturer-directory.com
SKU: 690323765
Availability: InStock
Rating: 4.3 (128 reviews)

Supplier:	Ningbo Uting Electronic Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	Ningbo/Shanghai

Product Specifications

Prod Model:	RD6-W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RD6-W

Main Features:
Over-voltage and under-voltage protection: When the power supply voltage is too high and too low, it will be cut off and over-voltage and under-voltage value can be set up.
Open-phase protection: Three-phase power supply is open phase, the equipment power will be cut off.
Phase sequence protection: When there is an error with the three-phase power, power supply will be cut off
Timing: Recording launching times and working hours
Show the current supply voltage
Fault records: Recording the times and the total time in the event of over-voltage, under-voltage, loss-phase or fault-phase.

RD6-W/RD6-WL Technical parameters
Max. count	999999 times	Power supply voltage	Three-phase 200V~450VAC
Max. timing	9999h 59mins	Show voltage range	150V~500V
Max. speed	5/second	Voltage measurement accuracy	± 1%
Total timing error	< 0.01%	Input signal	Active 24V/110V or 220V
Data keeping	18 years	Installation	Standard rail or M4 screws to install
Contact output capacity	8A/250VAC	Working environment	-5~45° C, humidity. < 85%, no condensation
