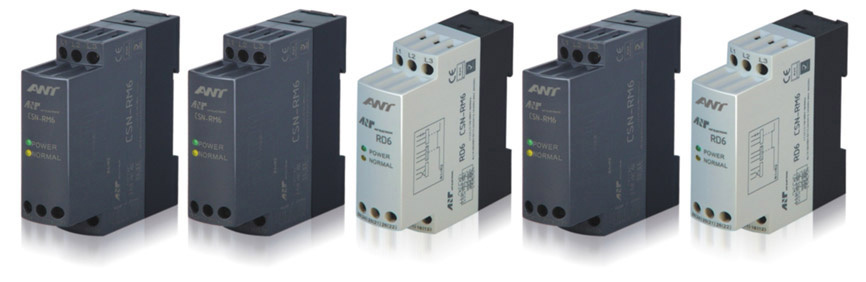

Phase Failure Protector Protection Relay RD6

Name: Phase Failure Protector Protection Relay RD6
Brand: china-manufacturer-directory.com
SKU: 690323895
Availability: InStock
Rating: 4.3 (145 reviews)

Supplier:	Ningbo Uting Electronic Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	Ningbo/Shanghai

Product Specifications

Prod Model:	RD6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RD6 series

1. Over-voltage and under-voltage protection: When the power supply voltage is too high and too low, it will be cut off and over-voltage and under-voltage value can be set up

2. Phase loss/failure protection

3. Phase sequence protection: When there is an error with the three-phase power, power supply will be cut off

4. It is small and SMT technology is used, with reliable quality and stable performance

5. It can be installed on a standard guide or screw

6. Suitable voltage range 140~580VAC/200~500VAC

7. Selecting the appropriate contact material according to different inductive load and resistive load

Items	RM3TG20	RM4TG20	RD6
Voltage Rating	200~500VAC	140~580VAC	200~500VAC
Frequency Rating	50/60Hz± 1Hz	50/60Hz± 1Hz	50/60Hz± 1Hz
Output Contact	2 normally open 2 normally closed	2 normally open 2 normally closed	2 normally open. 2 normally closed
Contact Material	AgSnO	AgSnO	AgCdO
Contact Capacity	5A280V(AC)/ 8A30V(DC)	5A280V(AC)/ 8A30V(DC)	5A280V(AC)/ 8A30V(DC)
Contact Endurance	2× 10 7	2× 10 7	2× 10 7
Operating Temperature	-45° C~+85° C	-45° C~+85° C	-45° C~+85° C
Imbalance Value	≤ 10%	≤ 10%	≤ 10%
Insulation withstanding grade	2.5KV/1mn /1mA/50Hz	2.5KV/1mn /1mA/50Hz	2.5KV/1mn /1mA/50Hz
Protection grade	IP40	IP40	IP40
