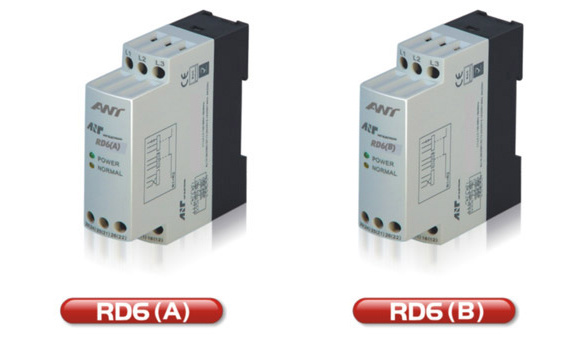

Phase Failure Protector Protection Relay (RD6)

Name: Phase Failure Protector Protection Relay (RD6)
Brand: China-Manufacturer-Directory.com
SKU: 690323575
Availability: InStock
Rating: 4.5 (108 reviews)

Supplier:	Ningbo Uting Electronic Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	Ningbo/Shanghai

Product Specifications

Prod Model:	RD6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

RD6 series

1. Over-voltage and under-voltage protection: When the power supply voltage is too high and too low, it will be cut off and over-voltage and under-voltage value can be set up

2. Phase loss/failure protection

3. Phase sequence protection: When there is an error with the three-phase power, power supply will be cut off

4. It is small and SMT technology is used, with reliable quality and stable performance

5. It can be installed on a standard guide or screw

6. Suitable voltage range 140~580VAC/200~500VAC

7. Selecting the appropriate contact material according to different inductive load and resistive load

Items	RM3TG20	RM4TG20	RD6
Voltage Rating	200~500VAC	140~580VAC	200~500VAC
Frequency Rating	50/60Hz± 1Hz	50/60Hz± 1Hz	50/60Hz± 1Hz
Output Contact	2 normally open 2 normally closed	2 normally open 2 normally closed	2 normally open. 2 normally closed
Contact Material	AgSnO	AgSnO	AgCdO
Contact Capacity	5A280V(AC)/ 8A30V(DC)	5A280V(AC)/ 8A30V(DC)	5A280V(AC)/ 8A30V(DC)
Contact Endurance	2× 10 7	2× 10 7	2× 10 7
Operating Temperature	-45° C~+85° C	-45° C~+85° C	-45° C~+85° C
Imbalance Value	≤ 10%	≤ 10%	≤ 10%
Insulation withstanding grade	2.5KV/1mn /1mA/50Hz	2.5KV/1mn /1mA/50Hz	2.5KV/1mn /1mA/50Hz
Protection grade	IP40	IP40	IP40

UTING Electronic Co. Is the professional manufacturer of industrial remote control.

In the international market, UTING products obtained a high praise and widely used in various fields. At present, UTING business has spread all over the world. Its headquarters is located in the Victoria, Seychelles. The global manufacturing center is located in Ningbo, China. There are subsidiaries in Netherlands, Germany, Norway, Britain, the United States, Estonia, Turkey and Sweden. Our dealers are throughout Australia, France, Spain and Denmark, etc.

We have a branch company Ningbo Ant electronic CO, . Ltd, produce crane load cell and elevator parts, such as elevator weighing load cells, elevator door detector, photoelectric sensors and other elevator sensors.
