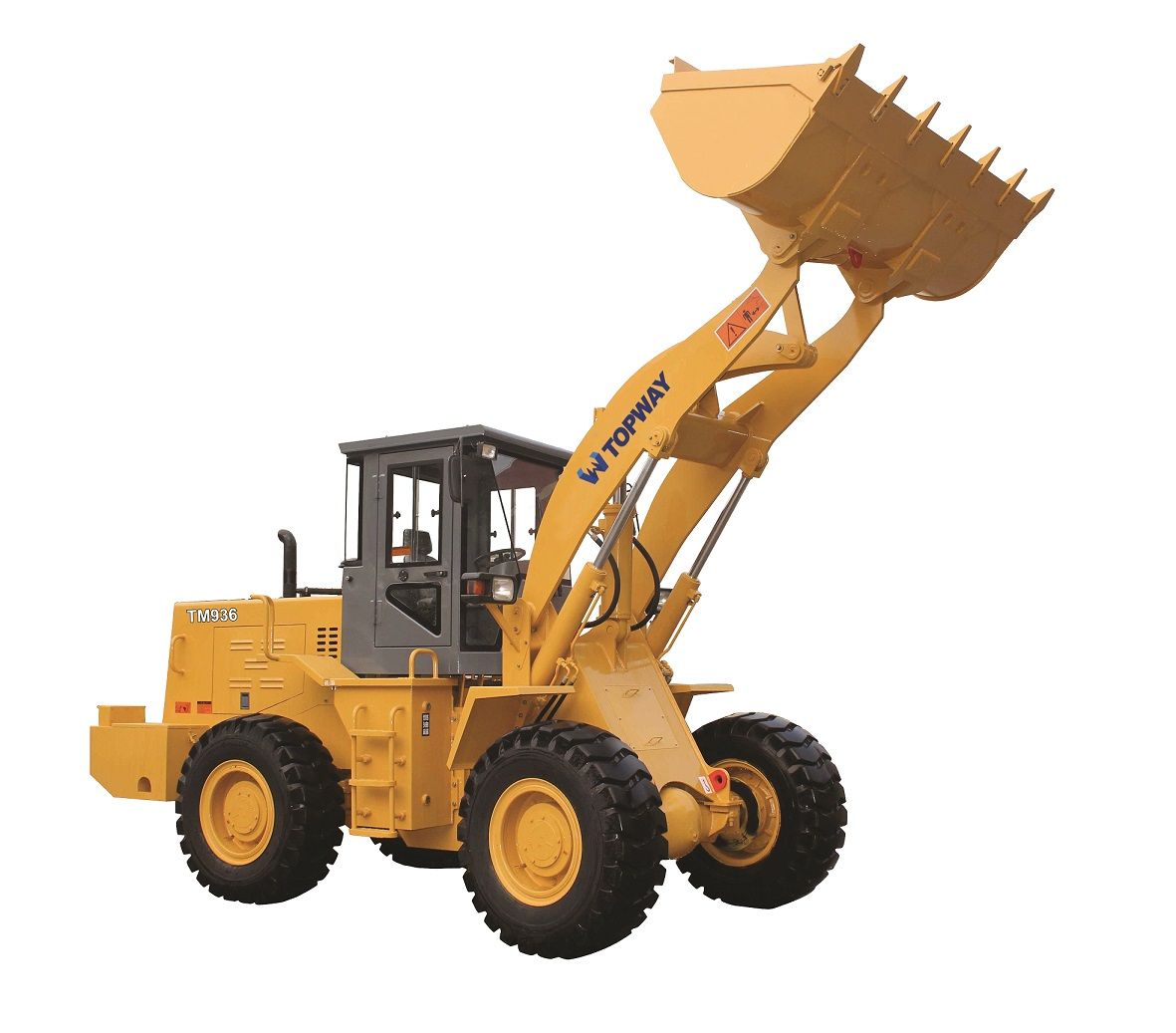

3ton Shovel Loader with Deutz Engine
| Price: |
US $ 26000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Unit |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
TM936 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Wheel Loader Rated Load: |
3000kgs |
| Wheel Loader Bucket Capacity: |
1.7cbm |
| Wheel Loader Operating Weight: |
10500kgs |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
TM936 3Ton Shovel Loader Main Features: 3Ton rated load 1.7CBM bucket capacity with Deutz WP6G125E22 engine, High quality transmission and axles, ISO standardIntroducing Deutz (WP6G125E22 )engine with low emission, low noise, low fuel consumption and excellent productivity. Transmission and torque converter are superior in excellent universality and low maintenance cost.
Unique and novel appearance, independent instrument assemble, driving cab with detachable design to ensure wide operation space, excellent view, comfortable seat.
Long arm(optional) can be close to 5ton wheel loader for the dumping height(about 3.1M)
Fixed-spindle gearbox with four speed shifts forward and two backward
Excellent whole-machine performance and extraordinary operation efficiency
Suitable for excavation and high unloading operation condition
Short wheel base shorten working cycle timeSpecification:| Items | Technical Specifications |
| Bucket capacity | 1.7m³ (1.2-2.0m³) |
| Rated load | 3.0t |
| Operating weight | 9.8t |
| Max.climbing gradient | ≥28° |
| Breakout force | ≥104KN |
| Max.tranction force | ≥88.5KN |
| Total time | 9.8s |
| Engine | Model | WP6G125E22 |
| Rated Power | 92kW |
| Rated speed | 2200r/min |
| Max.torque | 500N.m |
| Total air displacement | 6.75L |
| Rated fuel consumption rate | ≤220g/(kw.h) |
| Transmission system | Type of Hydraulic torque conterver | YJ315X |
| Torque coefficient | 3.6±0.2 |
| Type of Gearbox | BS428 |
| Transmission pressure | 1.1-1.5MPa |
| Driving axle | Reduction ratio | 20.51:1 |
| Tyre | Specification | 17.5-25 |
| Air Pressure | 0.30MPa |
| Steering system | Steering pump displacement | 50ml/r |
| Working pressure | 9.8 Mpa |
| No.of steering cylinder-bore*stoke | 2-80*294 |
| Working hydraulic system | No.of lift cylinder-bore*stoke | 2-110*785 |
| No.of tilt cylinder-bore*stoke | 1-160*503 |
| Displacement of working pump | 100ml/r |
| Working pressure | 15.6MPa |
| Distribution valve type | DF25.2 |
|
