Product Specifications
| Prod Model: |
TM966 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Wheel Loader Rated Load: |
6000kgs |
| Wheel Loader Bucket Capacity: |
3.5cbm |
| Wheel Loader Operating Weight: |
20100kgs |
| Quality: |
High Configuration |
| Type: |
Large Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

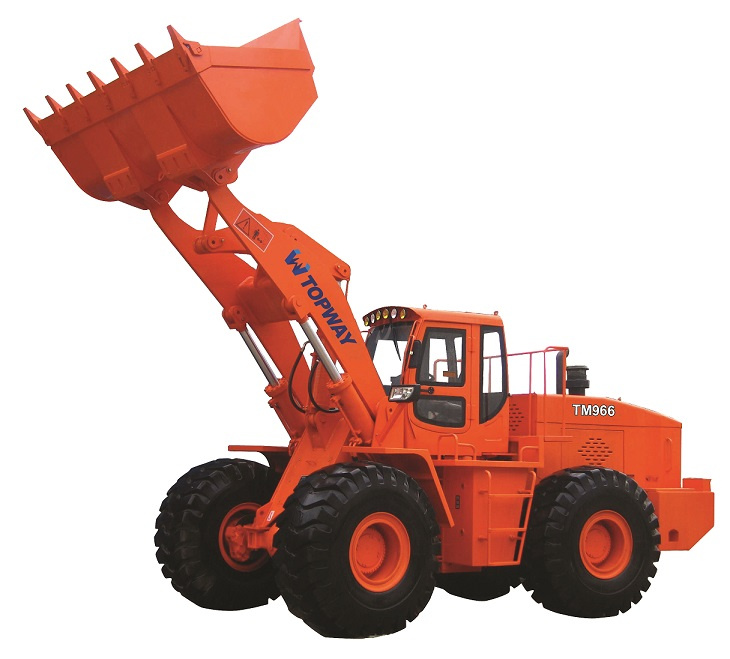

TM966 6Ton Shovel Loader Main Features:
6Ton rated load 3.5CBM bucket capacity with Weichai WD10G270E21 engine, High quality transmission and axles, ISO standard
Introducing Weichai Steyr (WD10G270E21) Engine with low emission, low noise, low fuel consumption and excellent productivity.
Maintenance-free storage battery of international brand and negative-pole cutting switch are safe and reliable.
Fully hydraulic steering and dual-pump-converging system make the loader work with high efficiency and lower power loss.
Long wheel base makes powerful traction, short cycle time and outstanding performance.
Single rocking arm with Z type linkage makes the equipment powerful breakout.
Extra-large engine hood provides easier access for maintenance.
Neatly arranged hydraulic hose are attractive and durable.
Centralized lubricating system are easy to maintain.
Outstanding machine performance and price ratio, high dumping performance, great working efficiency.
Specification:
| Items | Technical Specifications |
| Bucket capacity | 3.3m³(3.0-4.5m³) |
| Rated load | 6.0t |
| Operating weight | 20.1t |
| Max.climbing gradient | ≥25° |
| Breakout force | ≥180KN |
| Max.tranction force | ≥155KN |
| Total time | 11.8s |
| Engine | Model | WD10G270E21 |
| Rated Power | 199kw |
| Rated speed | 2200r/min |
| Max.torque | 1100N.m |
| Total air displacement | 9.726L |
| Rated fuel consumption rate | ≤215g/(kw.h) |
| Transmission System | Type of Hydraulic torque conterver | YJ375X3 |
| Torque coefficient | 3.166 |
| Type of Gearbox | ZL60 |
| Transmission pressure | 1.5-1.8MPa |
| Driving axle | Reduction ratio | 24.665:1 |
| Tyre | Specification | 26.5-25 |
| Air Pressure | 0.45MPa |
| Steering system | Steering pump displacement | 80ml/r |
| Working pressure | 17.5Mpa |
| No.of steering cylinder-bore*stoke | 2-100*324 |
| Working hydraulic system | No.of lift cylinder-bore*stoke | 2-190*721 |
| No.of tilt cylinder-bore*stoke | 1-200*563 |
| Displacement of working pump | 120ml/r |
| Working pressure | 20MPa |
| Distribution valve type | D32 |
Workshop Photos:
Product Photos:
Product Photos:
